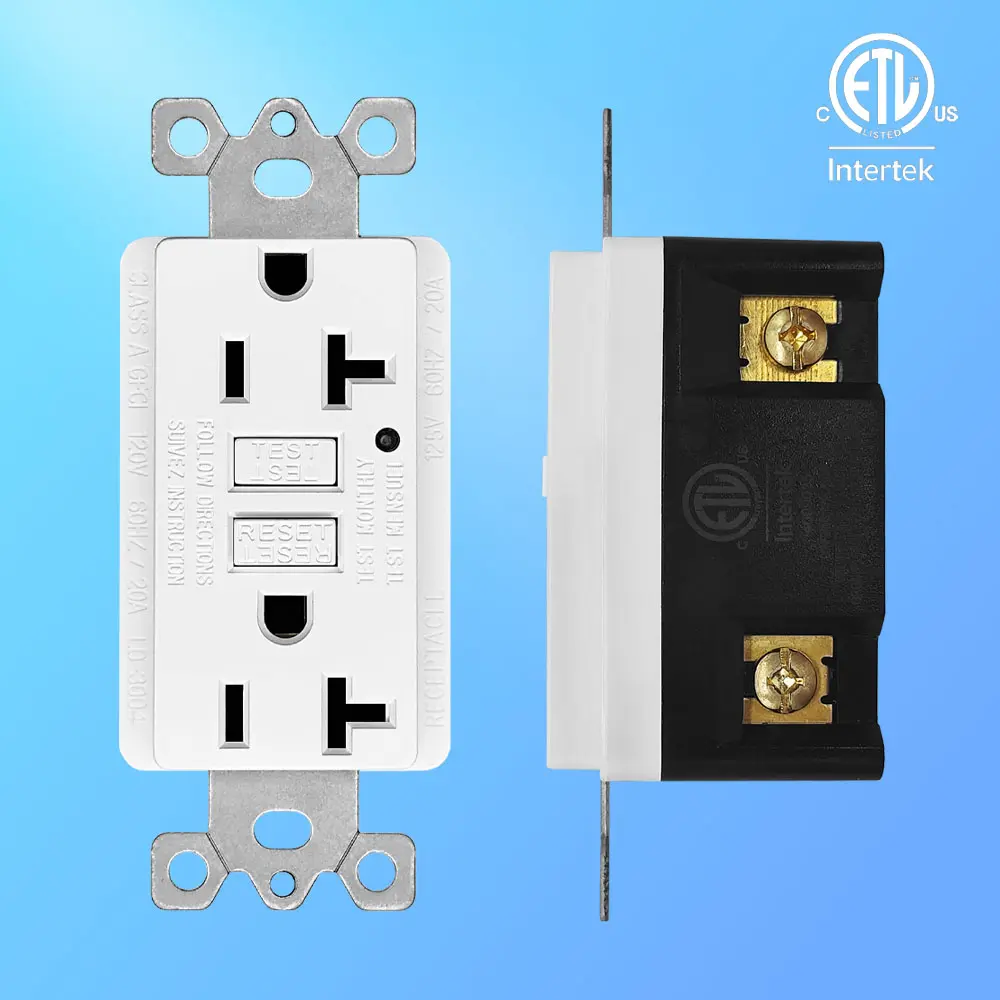

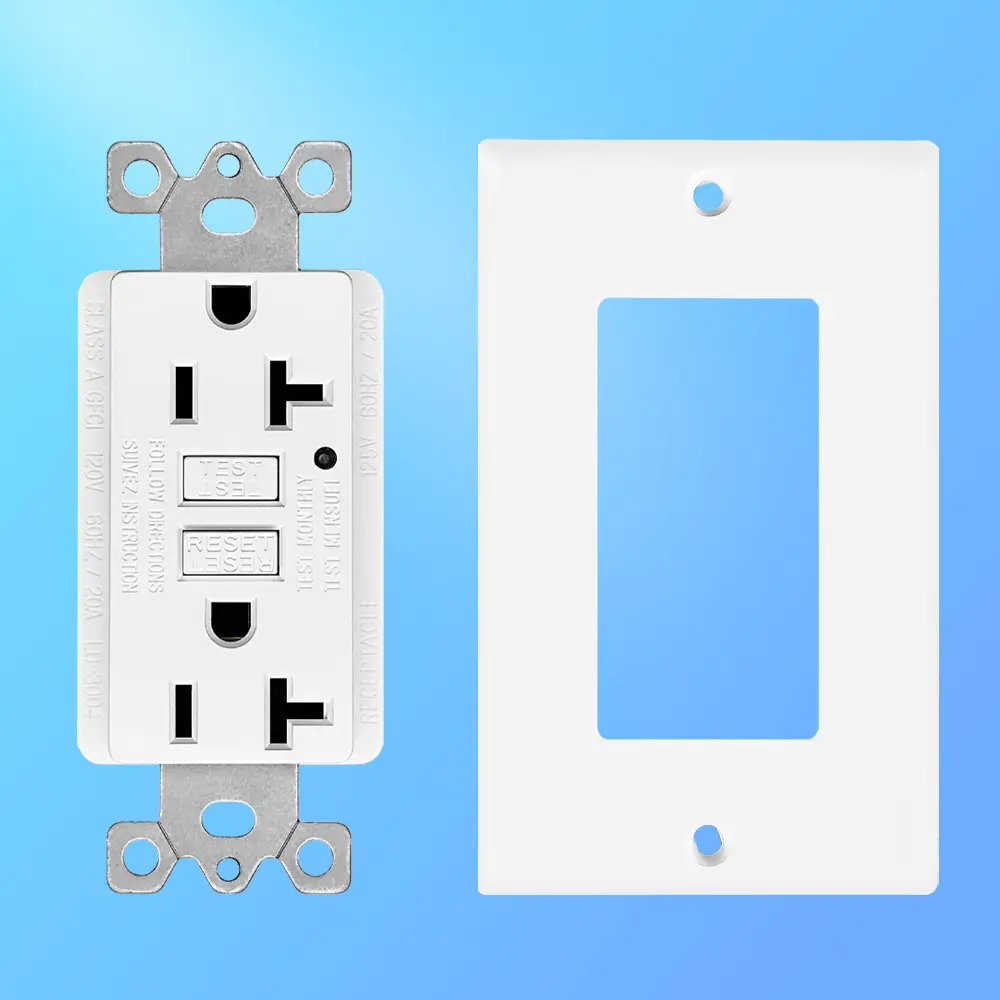

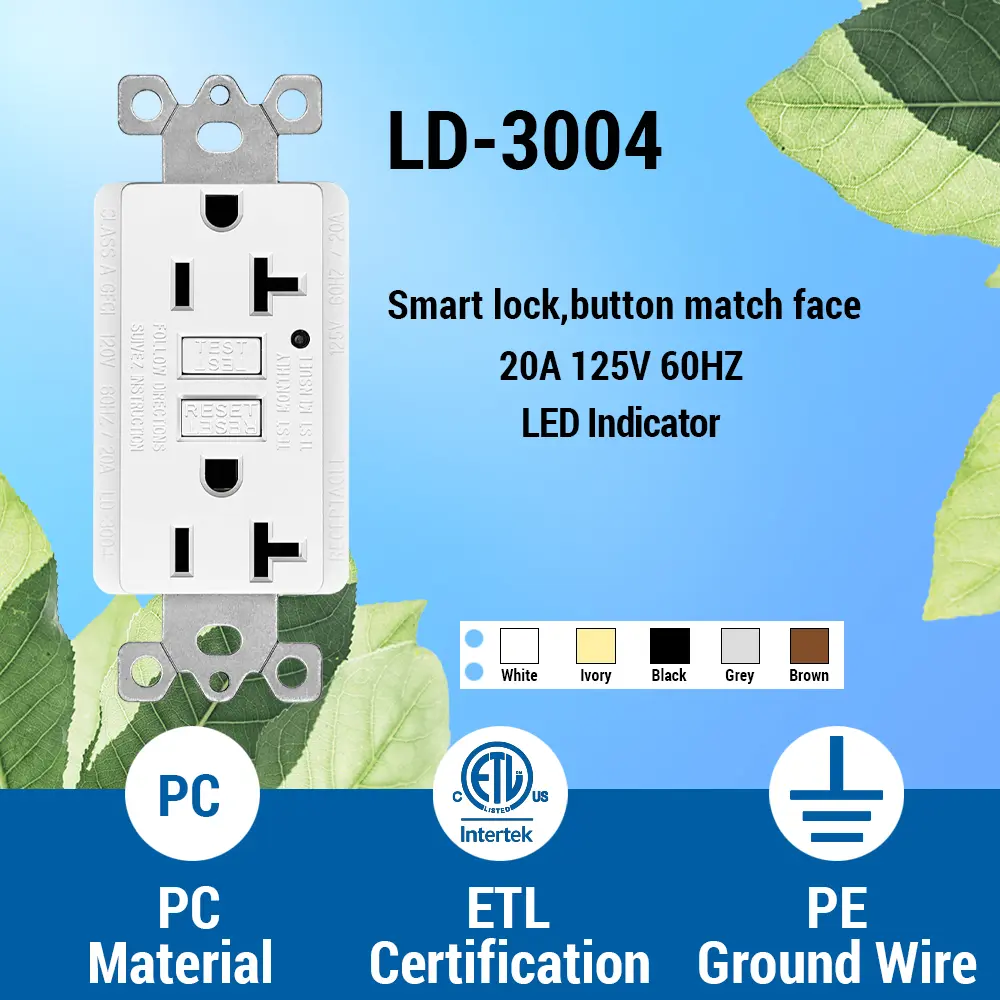

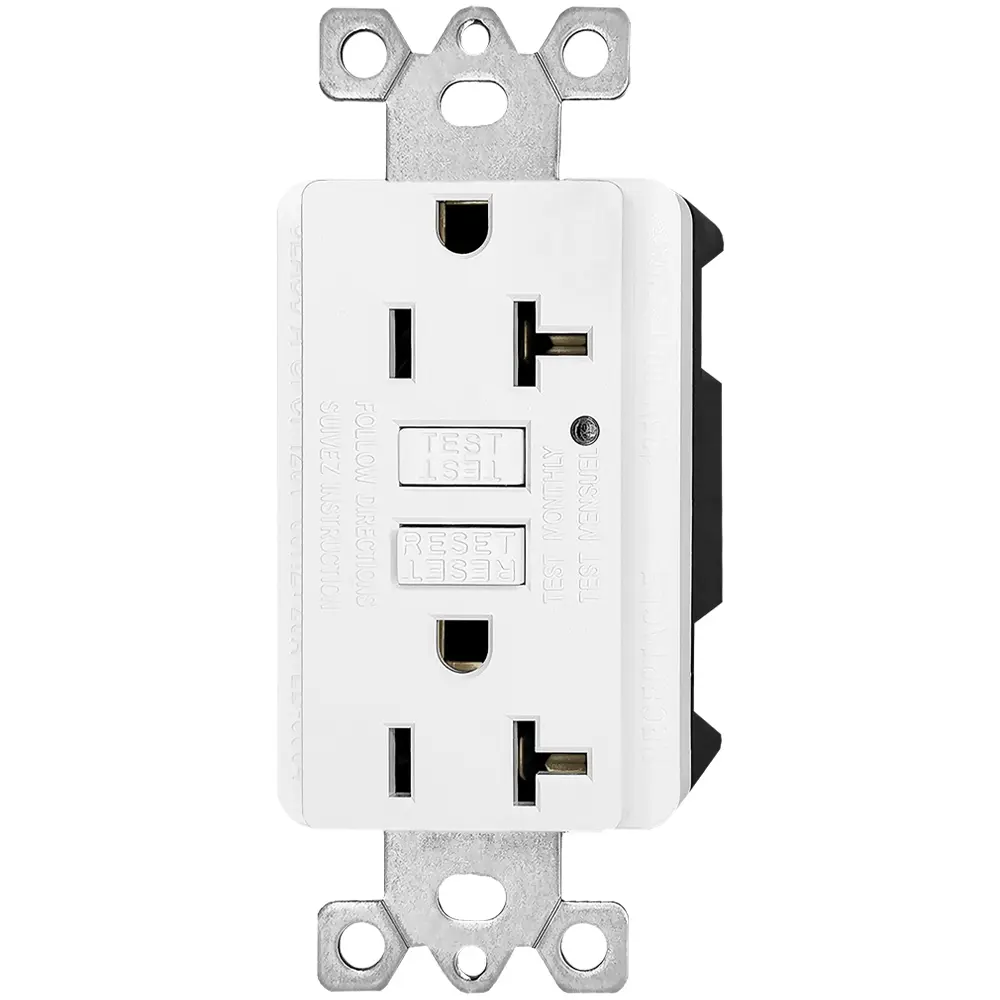

Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
1 / 5
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory
Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory

Wholesale 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade LD-3004 Factories, Factory

1. A GFCI can directly replace a standard electrical outlet and be installed in place of an old outlet without any modifications to the wiring.

2. Certification:ETL/cETL

Send Inquiry

Product Description

Product Specifications

Part No. LD-3004
Description 20 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade
Color White, Ivory, Black, Grey, Brown
Amp / Volt 20Amp / 125V AC (60Hz)
NEMA 5-20R
Pole / Wire 2 Pole, 3 Wire
Termination Back and side 20Amp feed-thru
Face & Body Material Thermoplastic
Strap Material Steel
Certifications ETL / cETL

Features

01
Constructed with premium high-impact resistant thermoplastic materials and rational structure design, ensures superior strength and durability.
02
Green LED Indicator: Know the GFCI working status at a simple glimpse.
03
Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted.
04
When the GFCI is powered on, the red indicator light will flash once within one second. After the red indicator light is displayed, press the reset button, and the green indicator light will turn on, indicating that the product is in working condition and the socket has power output.
05
If the product fails, it will cut off the output power or turn on the red indicator light to give an alarm. The device will start detection half an hour later at the beginning, and then automatically detect once every about 3 hours afterwards.
Frequently Asked Questions
What is the purpose of the Green LED indicator on this GFCI?
The Green LED indicator allows you to verify the GFCI's working status at a glance. When lit, it signifies that the device is functioning correctly and providing power.
How often does the self-test function operate?
The device performs an initial detection 30 minutes after being powered on, and then automatically conducts a self-test approximately once every 3 hours.
What materials are used for the face and body?
The face and body are made from high-quality, high-impact resistant thermoplastic, ensuring long-term durability and strength.
Does this outlet provide continuous protection during self-tests?
Yes, it provides continuous ground fault protection and can detect and trip on a fault even while a self-test is in progress.
What certifications does the LD-3004 hold?
The product is fully ETL and cETL certified, meeting rigorous safety standards for residential use.
What should I do if the red indicator light turns on?
The red light serves as an alarm. If it stays on or the device cuts off power, it indicates a failure in the product or a ground fault, requiring inspection or replacement.
