1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

Part No.	LD-3012TR

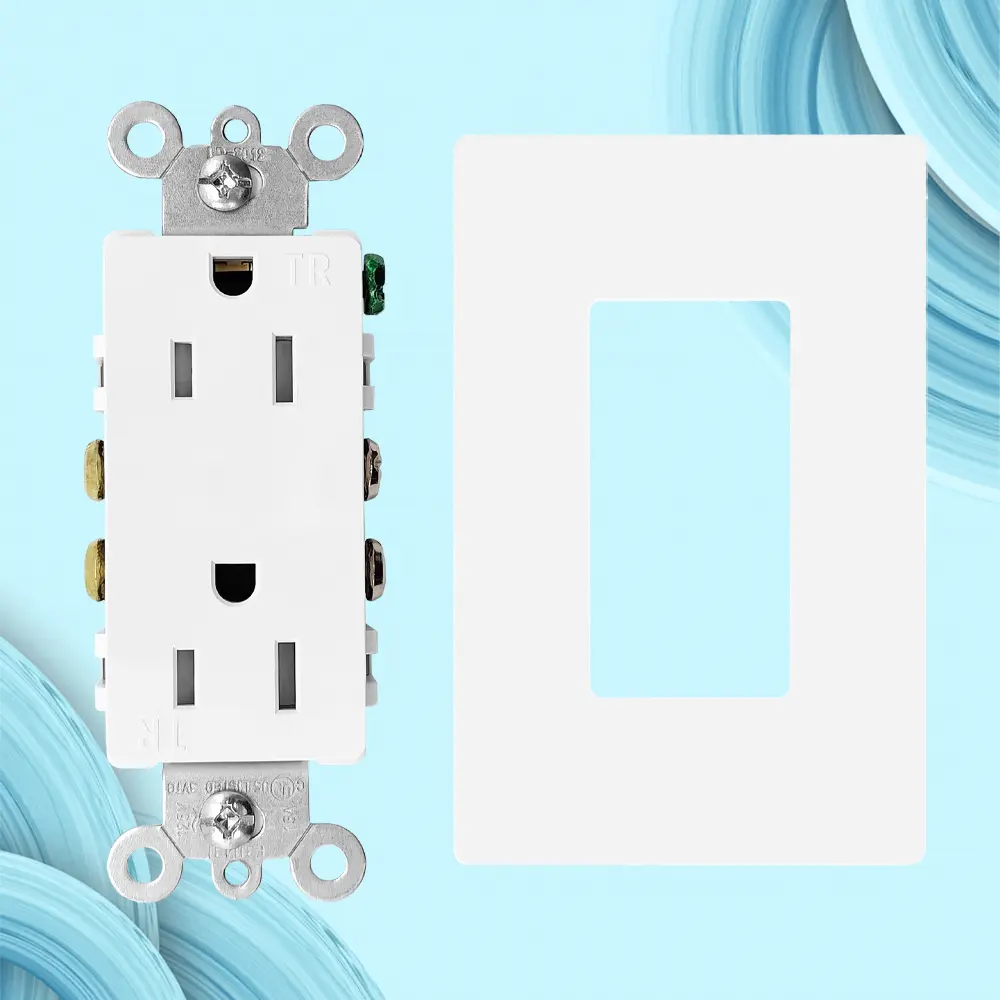

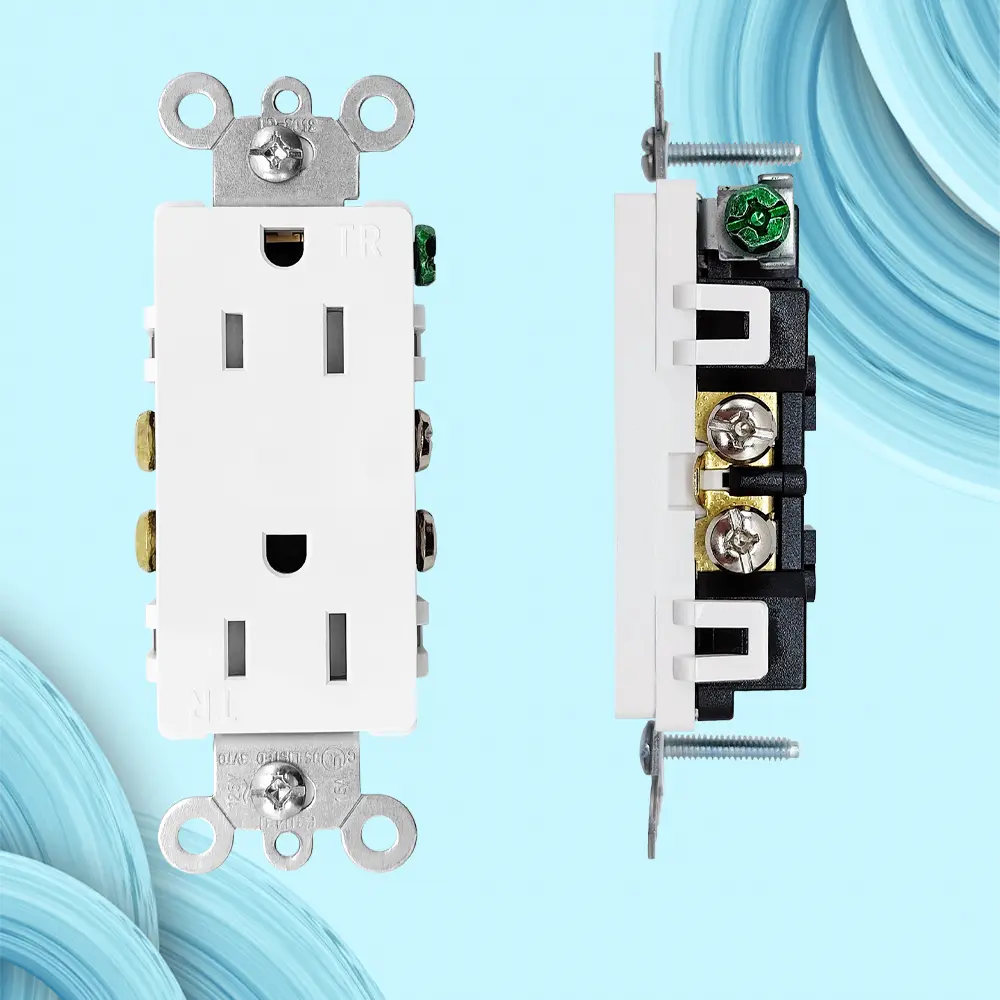

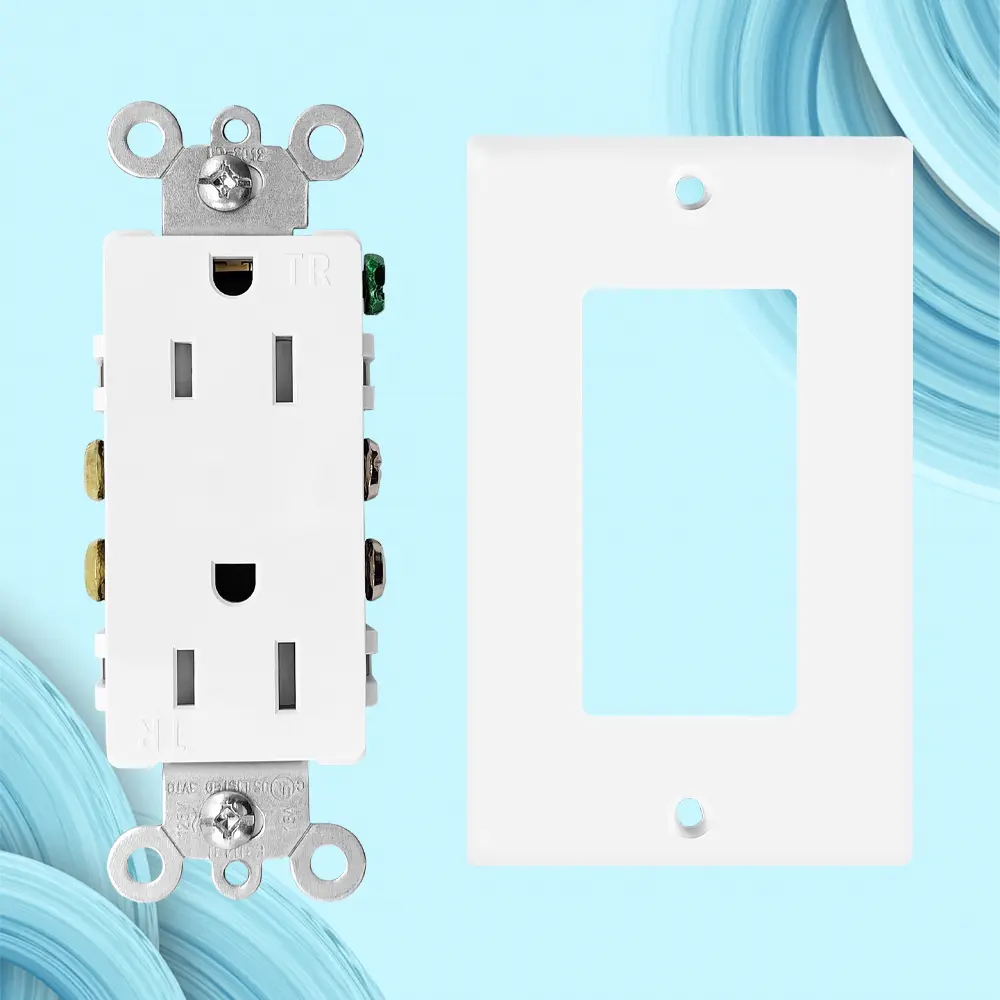

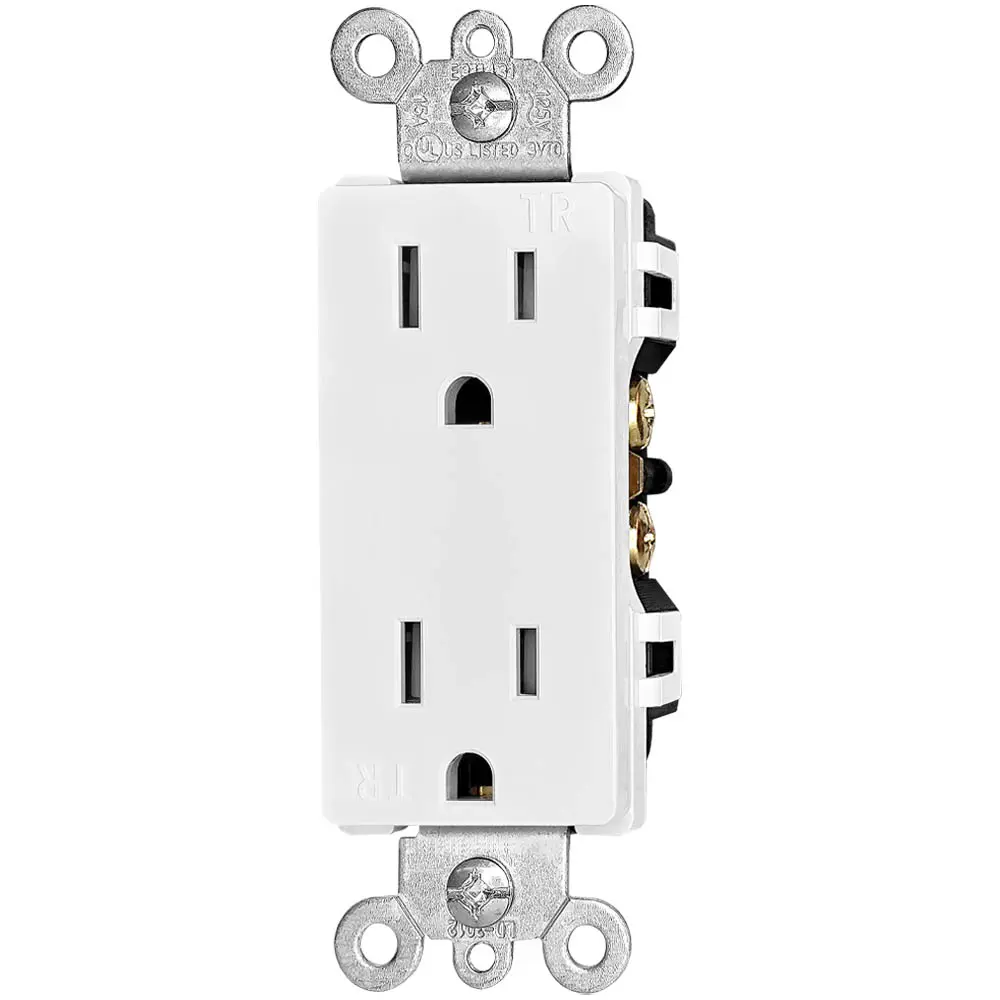

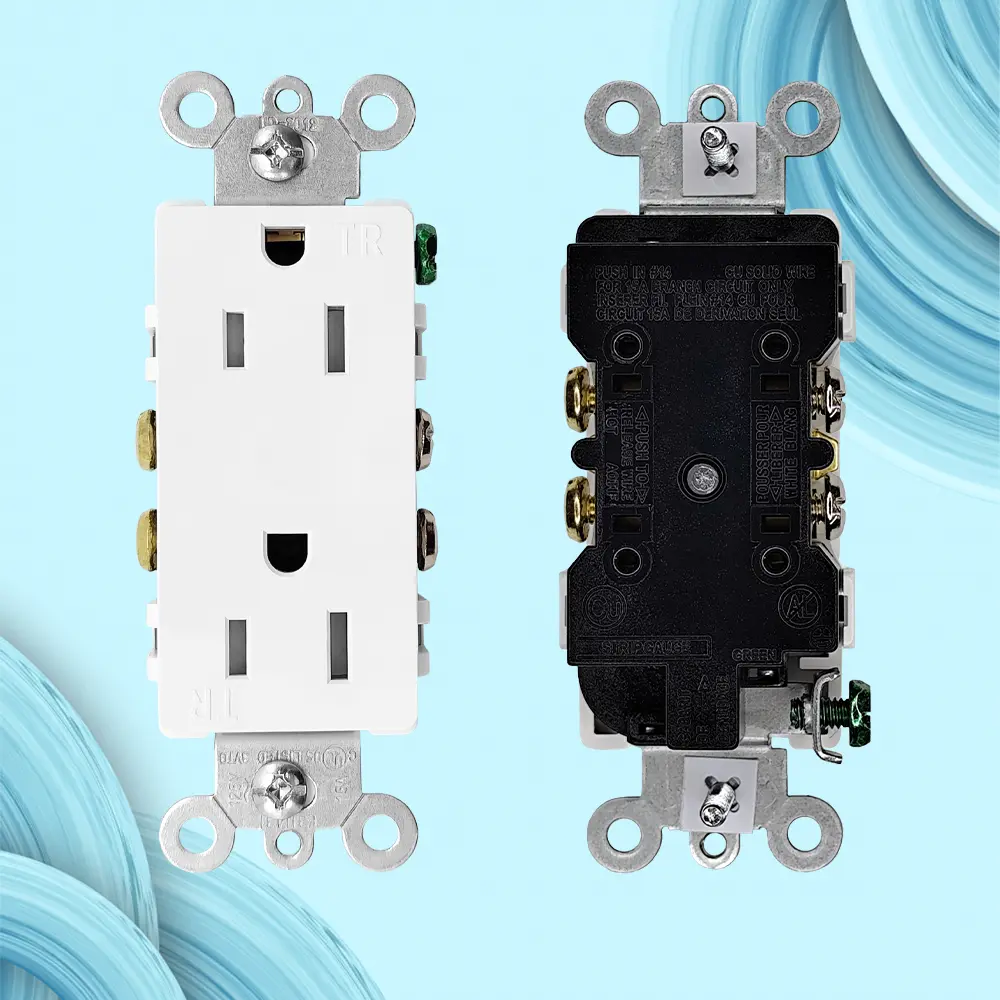

Description	Decora Duplex Receptacle, Straight Blade
Color Options	White, Ivory, Black, Almond, Grey, Brown
Rating	15A, 125VAC
NEMA	5-15R or 5-15P
Pole / Wire	2 Pole, 3 Wire
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Materials	Thermoplastic PC (Face & Body), Steel (Strap)

Decora Duplex Receptacle

Code Compliance

UL Listed UL 498, UL file #E311431
ROHS compliant

Material Characteristics

Flammability: UL-94, Rated V0
Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Key Features

Terminal screws accept up to No. 12 AWG copper or copper-clad wire
Double-wipe power contacts for reliable conductivity and plug retention
Impact resistant thermoplastic construction for long-term durability
Heavy-gauge, galvanized steel mounting strap

Double-wipe ground contacts ensure long-term ground retention
Tri-Drive ground, terminal and mounting screws ease installation
Captive mounting screws for convenient setup
Limited one-Year Warranty

Packing Details

Pack-out: 1/20/200

G.W.: 13 KGS

MEAS: 42.5 * 29 * 23.5 CM

Frequently Asked Questions

What is the electrical rating for this receptacle?

The LD-3012TR Decora Duplex Receptacle is rated for 15A and 125VAC.

Does this product meet safety standards?

Yes, it is UL Listed (UL 498, file #E311431) and ROHS compliant.

What wire size can be used with the terminal screws?

The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

What colors are available for the LD-3012TR?

It is available in White, Ivory, Black, Almond, Grey, and Brown to match various interior designs.

What material is the body made of?

Both the face and the body are constructed from impact-resistant Thermoplastic PC, rated UL-94 V0 for flammability.

What kind of warranty is provided?

The product comes with a limited one-year warranty.
