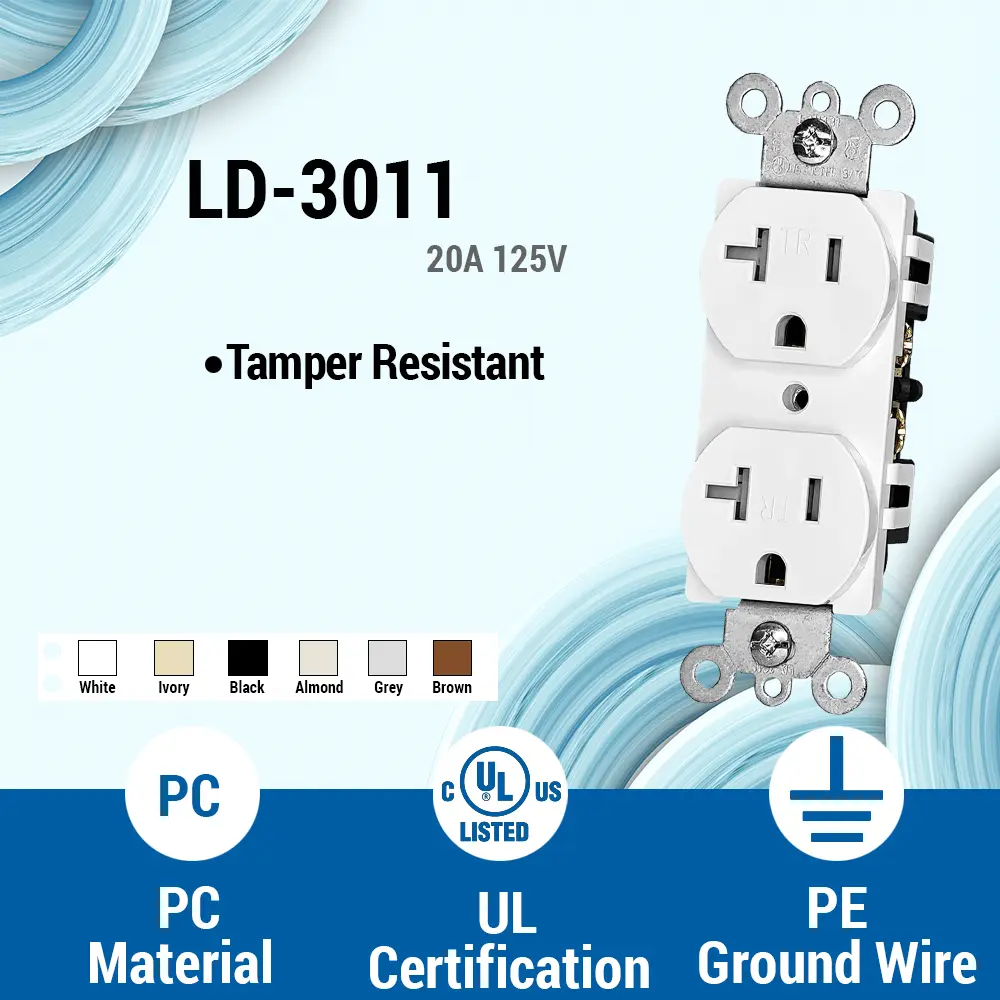

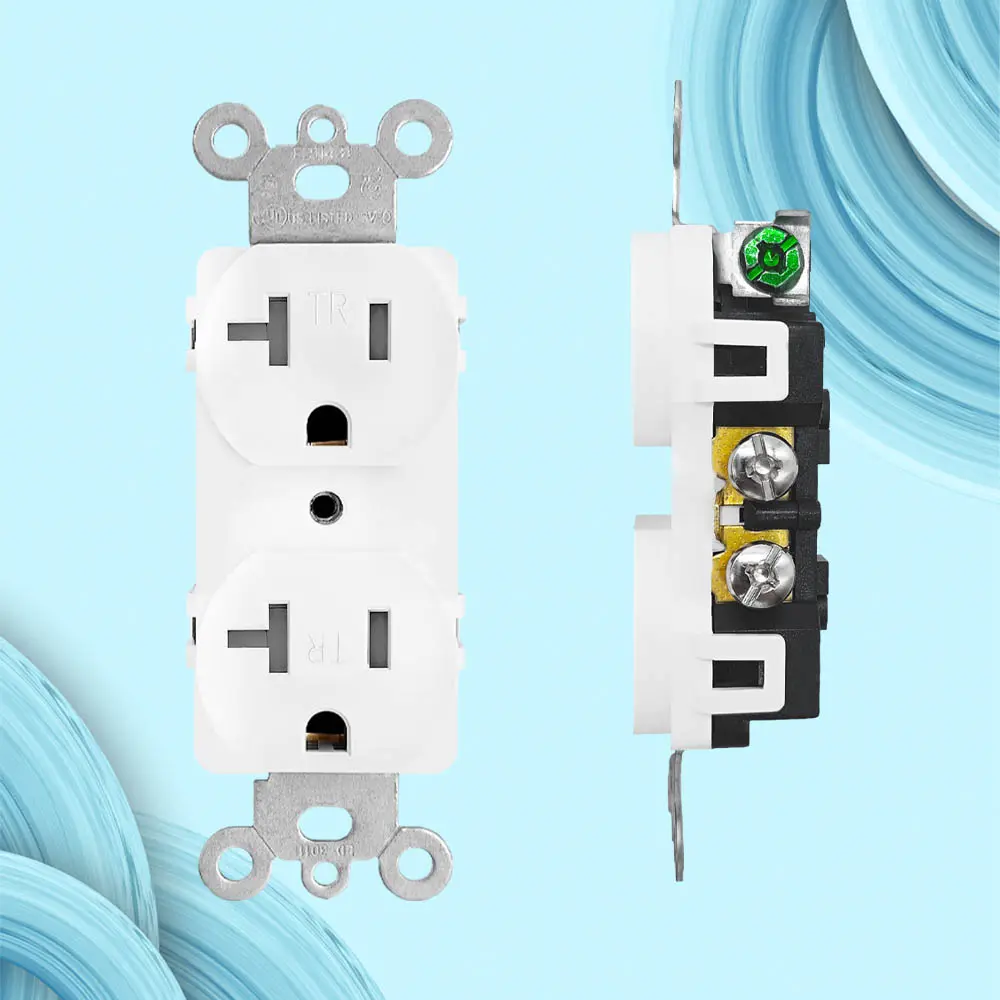

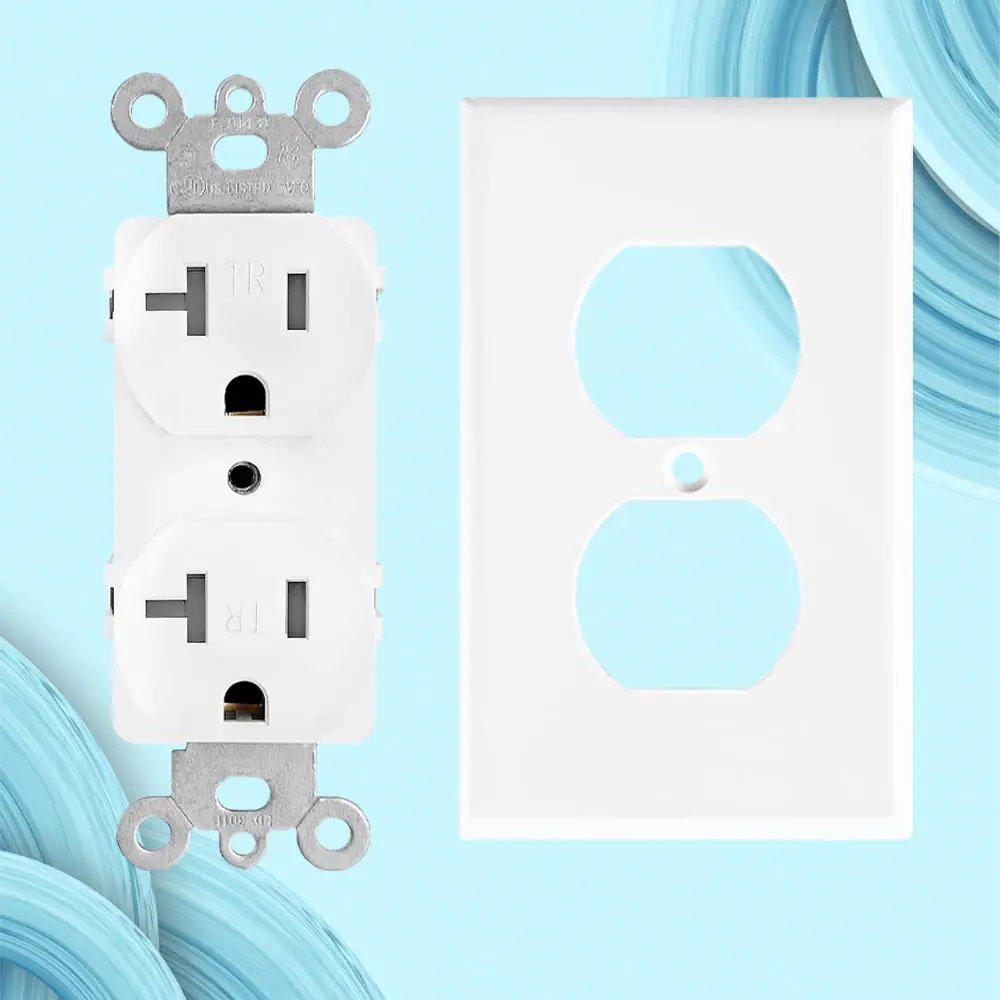

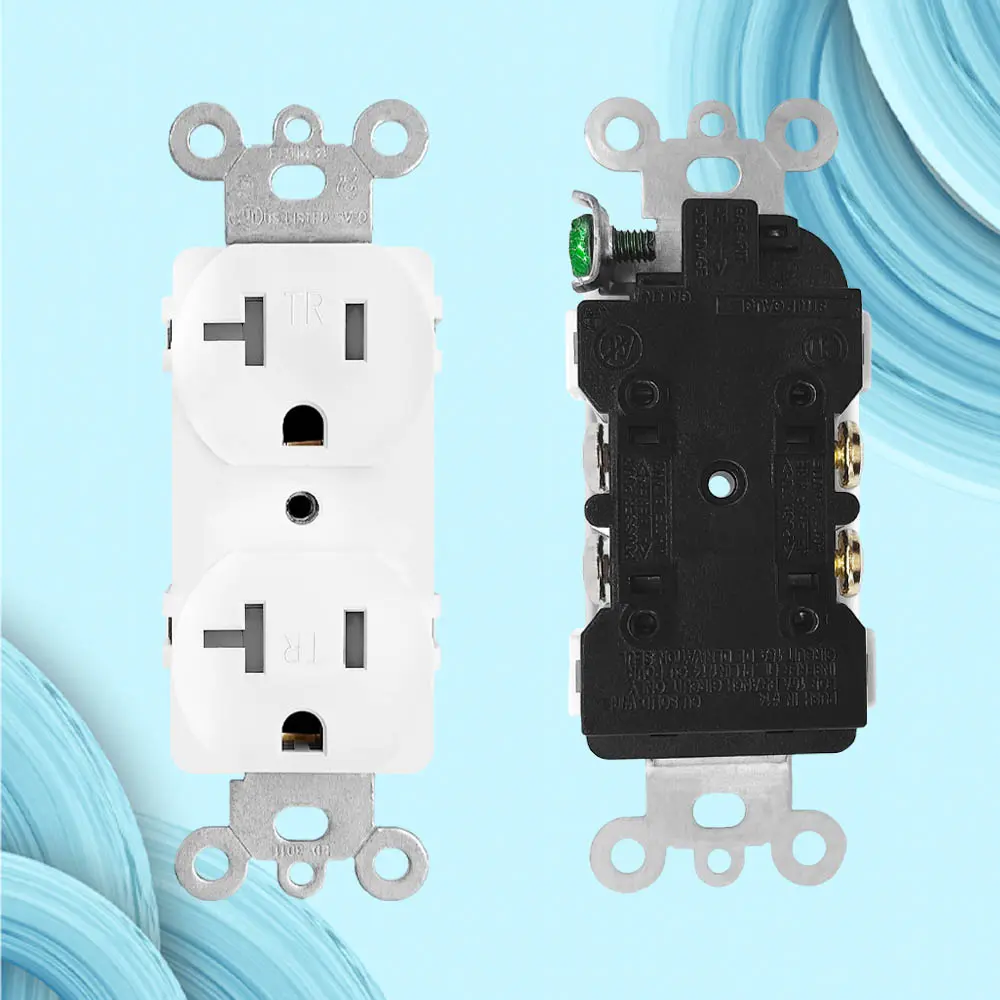

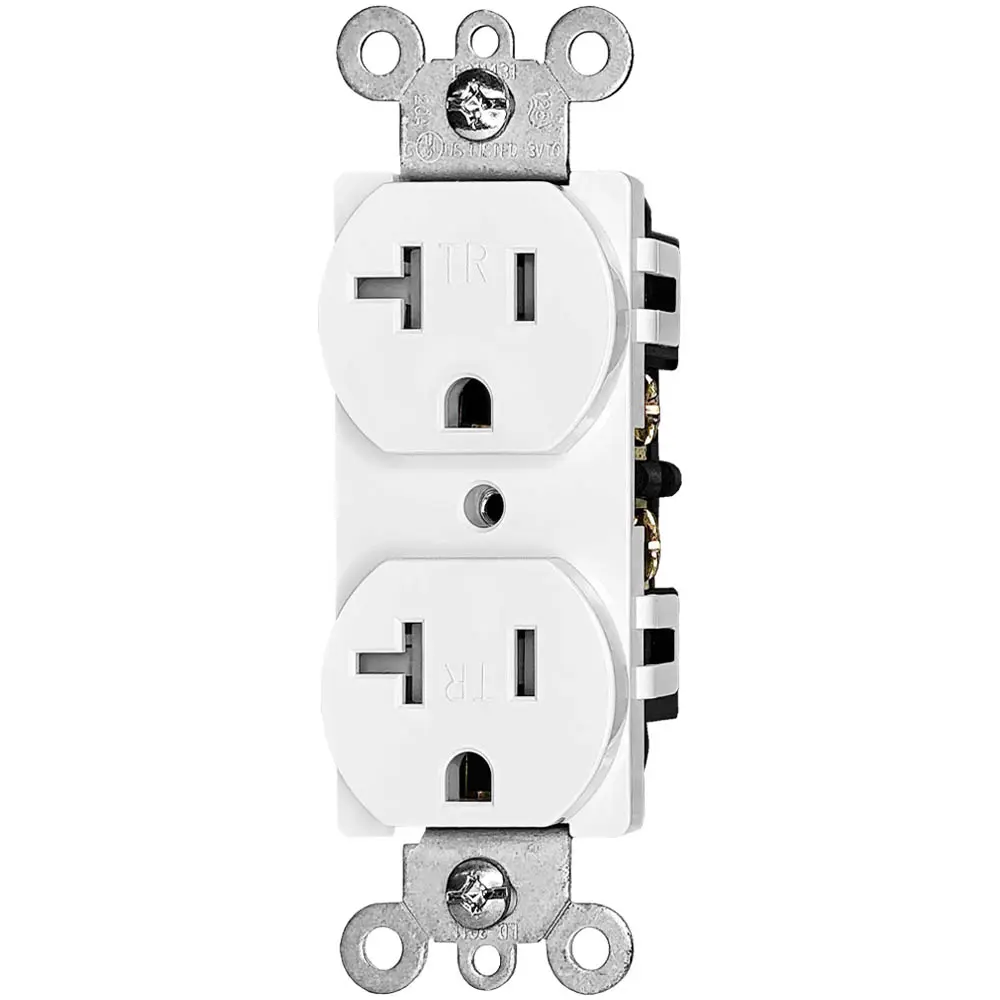

OEM 20A125V, 5-20R,Standard Duplex TR receptacle UL Manufacturers, Suppliers

1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

Part No.	LD-3011TR
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, almond, Grey, Brown.
Rating	20A, 125VAC
NEMA	5-20R or 5-20P
Pole	2
Wire	3
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Face Material	Thermoplastic PC
Body Material	Thermoplastic PC
Strap Material	Steel

Code Compliance

UL Listed UL 498, UL file #E311431

ROHS comply

Material Characteristics

Environmental: Flammability, UL-94, Rated V0

Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Features

Terminal screws accept up to No. 12 AWG copper or copper-clad wire

Double-wipe power contacts for reliable conductivity and plug retention

Impact resistant thermoplastic construction

Heavy-gauge, galvanized steel mounting strap

Double-wipe ground contacts ensure long-term ground retention

Tri-Drive ground, terminal and mounting screws ease installation

Captive mounting screws

Limited one-Year Warranty

Packing Details

Pack-out: 1/20/200

G.W.: 13 KGS

MEAS: 42.5*29*23.5 CM

Frequently Asked Questions

What is the electrical rating for the LD-3011TR receptacle?

The LD-3011TR is a standard duplex receptacle rated at 20A and 125VAC.

What type of wire is compatible with this device?

The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

Does this product meet safety standards?

Yes, it is UL Listed (UL 498, file #E311431) and ROHS compliant.

What materials are used in its construction?

The face and body are made of high-quality Thermoplastic PC, while the mounting strap is made of heavy-gauge galvanized steel.

What are the available color options?

The receptacle is available in White, Ivory, Black, Almond, Grey, and Brown.

What is the operating temperature range?

It can operate reliably in temperatures ranging from -40°F to 149°F (-40°C to 65°C).
