| Part No. | LD-3012 |

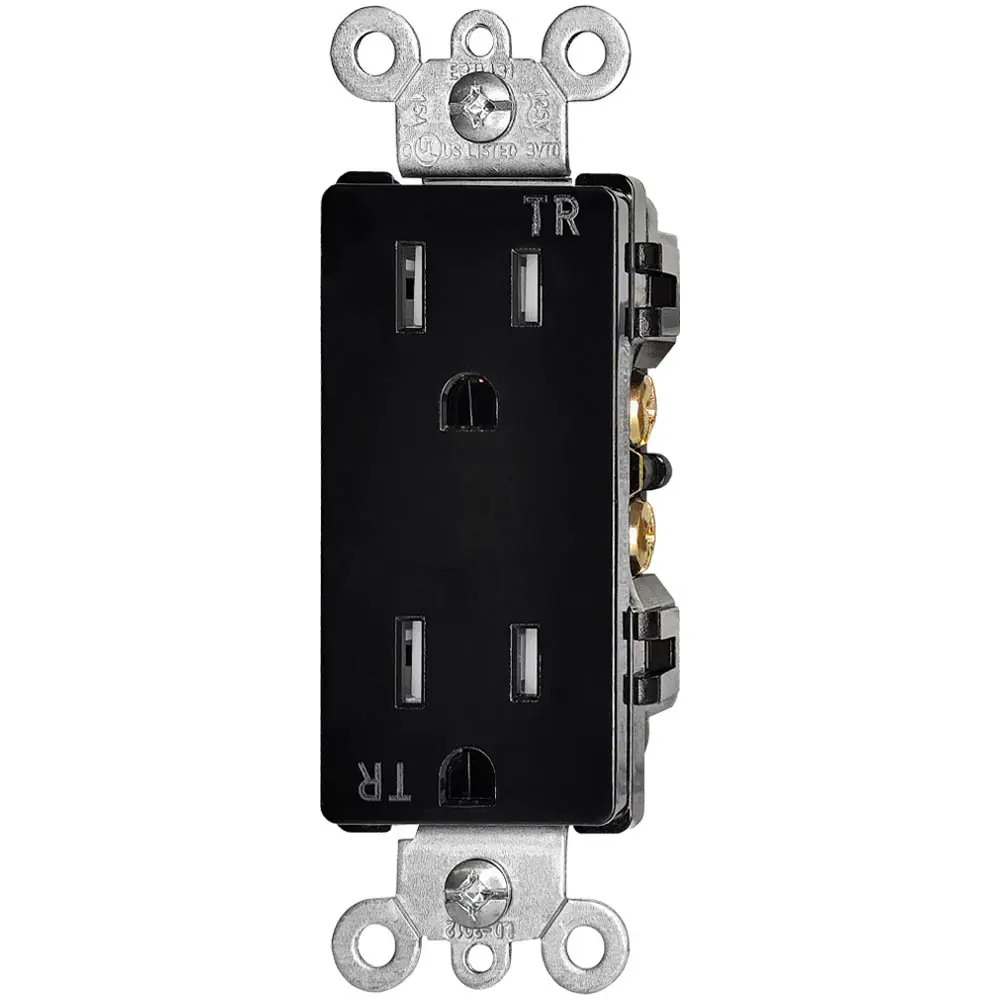

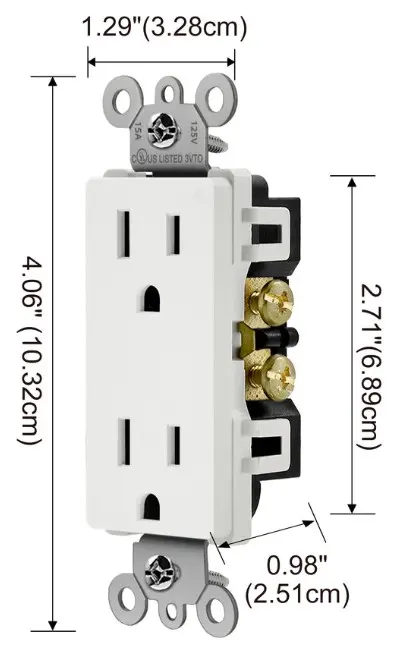

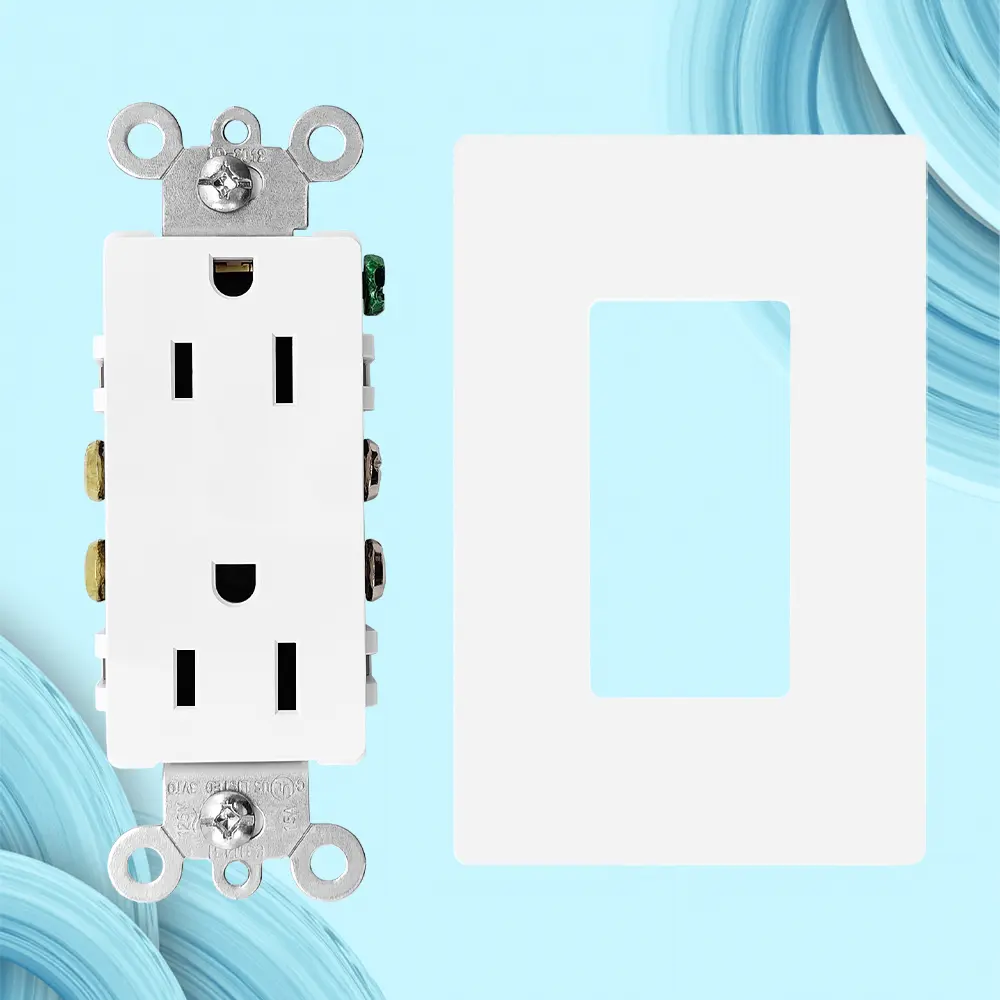

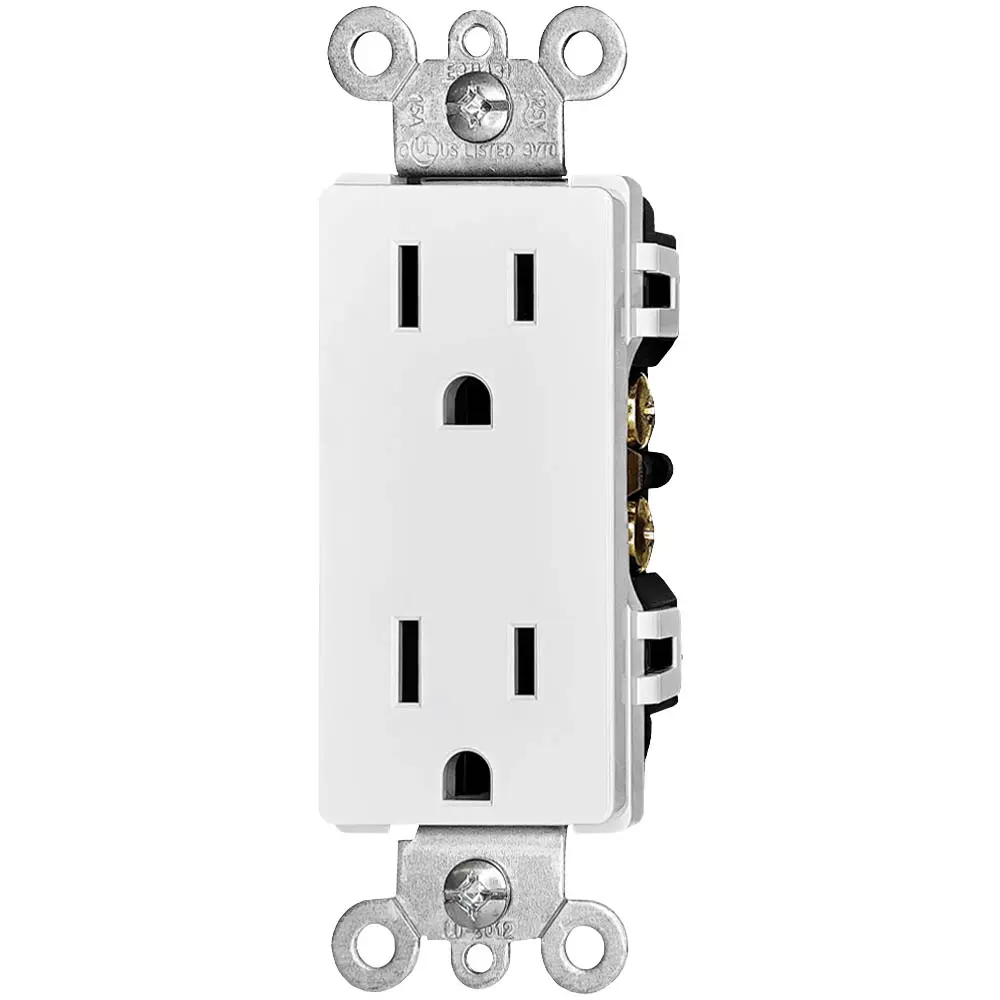

| Description | Decora Duplex Receptacle, Straight Blade |
| Color | White, Ivory, Black, Almond, Grey, Brown |
| Rating | 15A, 125VAC |
| NEMA | 5-15R or 5-15P |
| Pole / Wire | 2 Pole, 3 Wire |
| Grounding | U Grounding Screw |

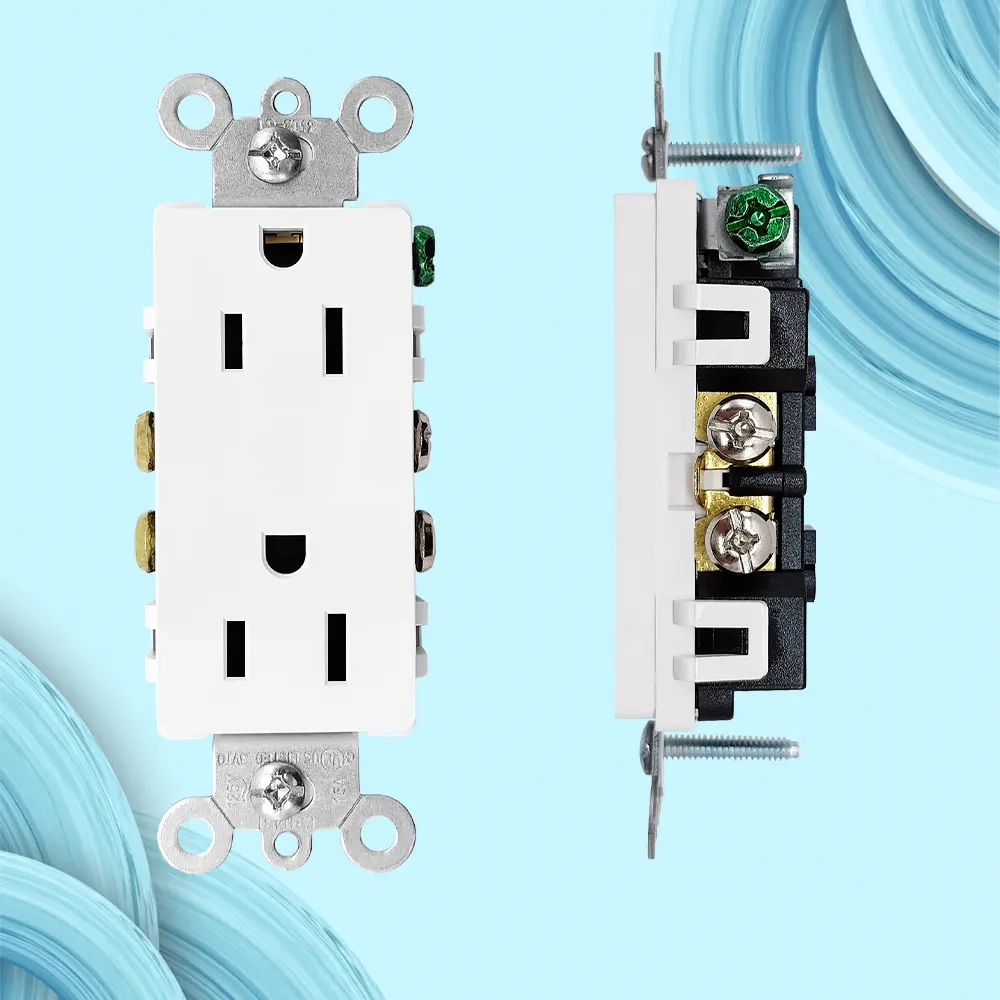

| Termination | Quick-wire Push-in & Side |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Face Material | Thermoplastic PC |
| Body Material | Thermoplastic PC |
| Strap Material | Steel |
- UL Listed UL 498, UL file #E311431
- ROHS comply
- Environmental: Flammability, UL-94, Rated V0
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Terminal screws accept up to No. 12 AWG copper or copper-clad wire
- Double-wipe power contacts for reliable conductivity and plug retention
- Impact resistant thermoplastic construction
- Heavy-gauge, galvanized steel mounting strap
- Double-wipe ground contacts ensure long-term ground retention
- Tri-Drive ground, terminal and mounting screws ease installation
- Captive mounting screws
- Limited One-Year Warranty
| Pack-out | 1/20/200 |
| G.W. | 13 KGS |
| MEAS | 42.5 * 29 * 23.5 CM |
Frequently Asked Questions
Q1: What wire sizes are compatible with the LD-3012 receptacle?
A: The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire for secure installation.
Q2: What is the fire safety rating of the materials used?
A: Both the face and body are made from thermoplastic PC with a flammability rating of UL-94 V0.
Q3: Does the receptacle support quick wiring?
A: Yes, it features both Quick-wire Push-in and side termination for flexible installation options.
Q4: What are the electrical ratings for this device?
A: This Decora Duplex Receptacle is rated for 15A and 125VAC.
Q5: Is this product certified for use in the US and Canada?
A: Yes, it is UL Listed under file #E311431 and complies with UL 498 standards.
Q6: What colors can I choose from?
A: The LD-3012 is available in White, Ivory, Black, Almond, Grey, and Brown to match various decor styles.
