1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

Part No.	LD-3011
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, Almond, Grey, Brown
Rating	20A, 125VAC
NEMA	5-20R or 5-20P
Pole / Wire	2 Pole, 3 Wire
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Material	Thermoplastic PC (Face & Body), Steel Strap

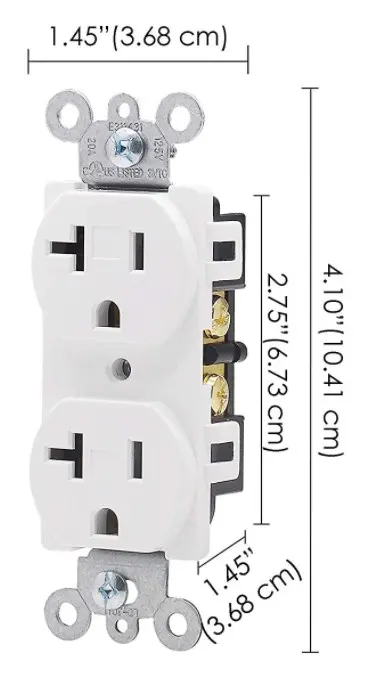

Product Diagram

Standards & Material

UL Listed UL 498 UL File #E311431 ROHS Compliant Flammability UL-94 V0

Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Key Features

✓ Terminal screws accept up to No. 12 AWG copper or copper-clad wire

✓ Double-wipe power contacts for reliable conductivity and plug retention

✓ Impact resistant thermoplastic construction for long-term durability

✓ Heavy-gauge, galvanized steel mounting strap

✓ Tri-Drive ground, terminal and mounting screws ease installation

✓ Limited One-Year Warranty

Packing Data

Pack-out: 1/20/200
Gross Weight: 13 KGS
Measurement: 42.5 * 29 * 23.5 CM

Frequently Asked Questions

What is the electrical rating of the LD-3011 receptacle?

The LD-3011 is rated for 20A and 125VAC, suitable for standard residential and commercial electrical systems.

What wire sizes can be used with this device?

The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

Does this product meet safety standards?

Yes, it is UL Listed under file #E311431 and complies with UL 498 and ROHS standards.

What materials are used for the construction?

The face and body are made of high-quality thermoplastic PC, and the mounting strap is constructed from heavy-gauge galvanized steel.

What are the available color options?

This model is available in White, Ivory, Black, Almond, Grey, and Brown to match various interior designs.

What is the operating temperature range?

The receptacle is designed to operate safely in temperatures ranging from -40°F to 149°F (-40°C to 65°C).
