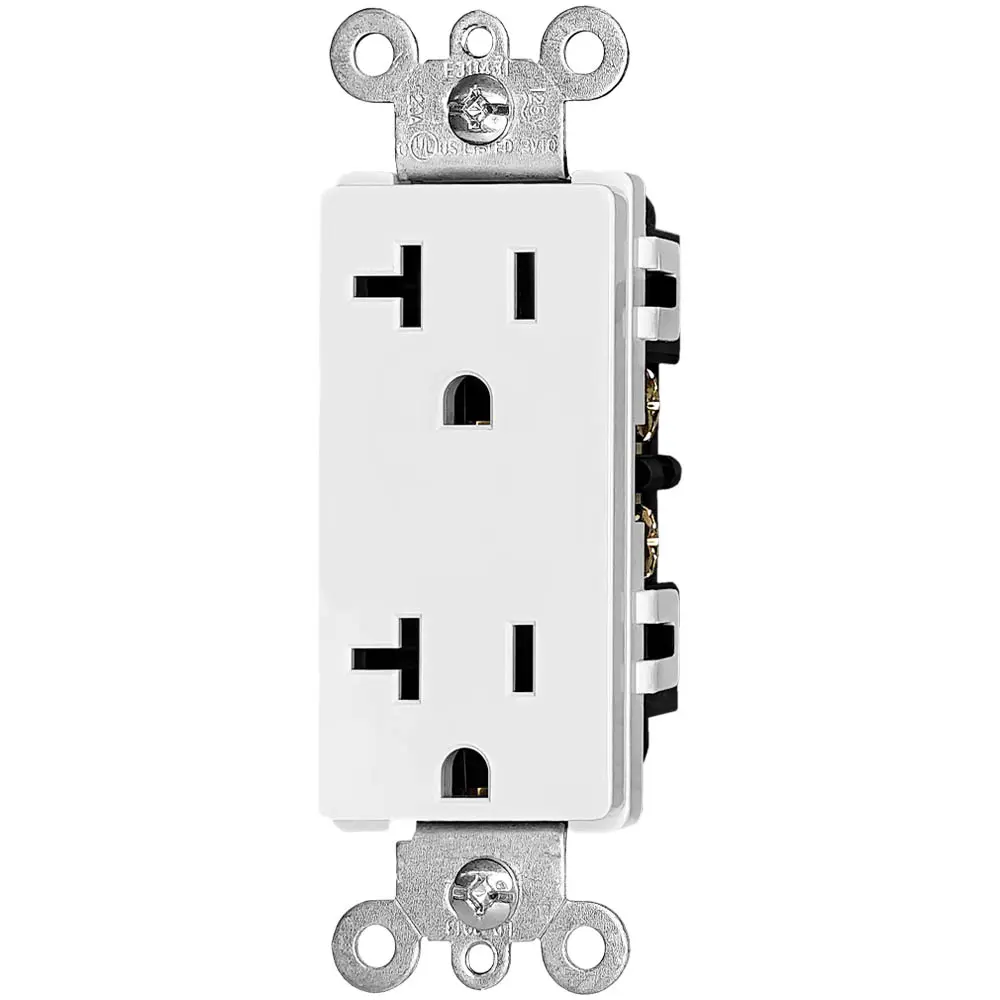

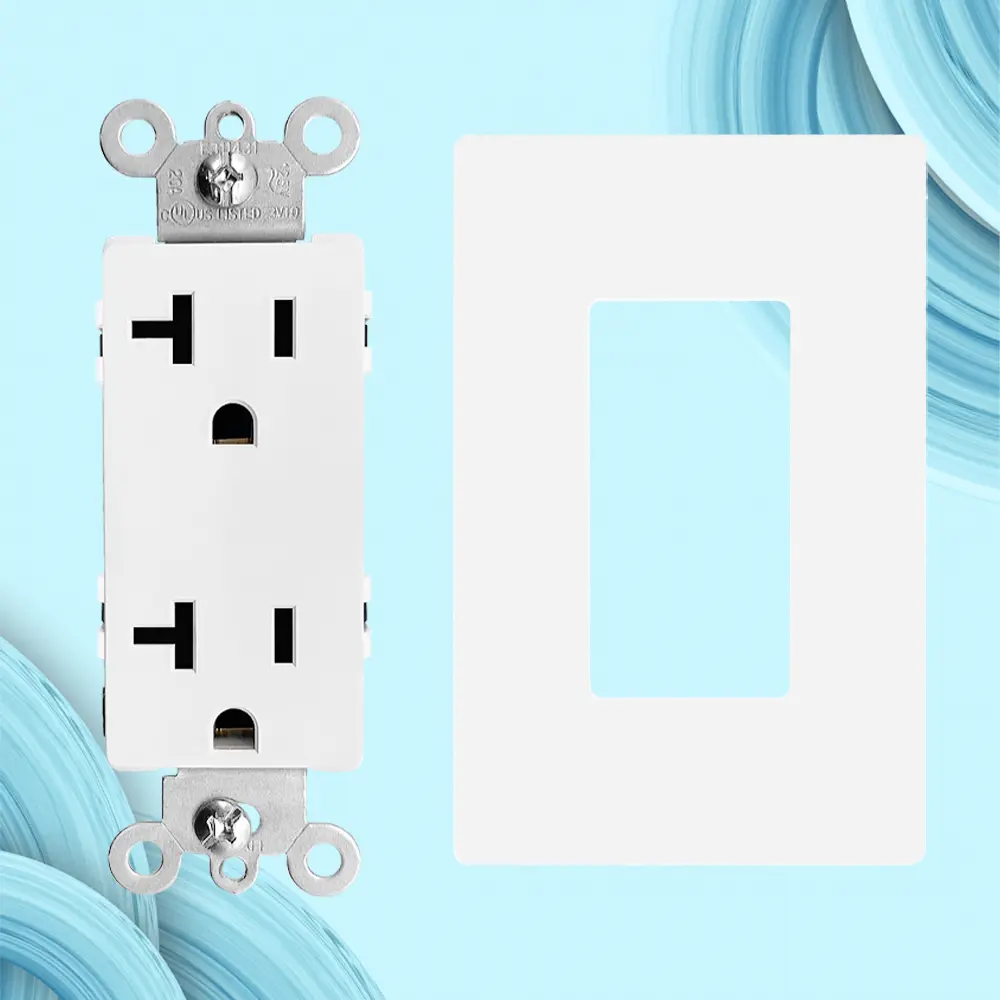

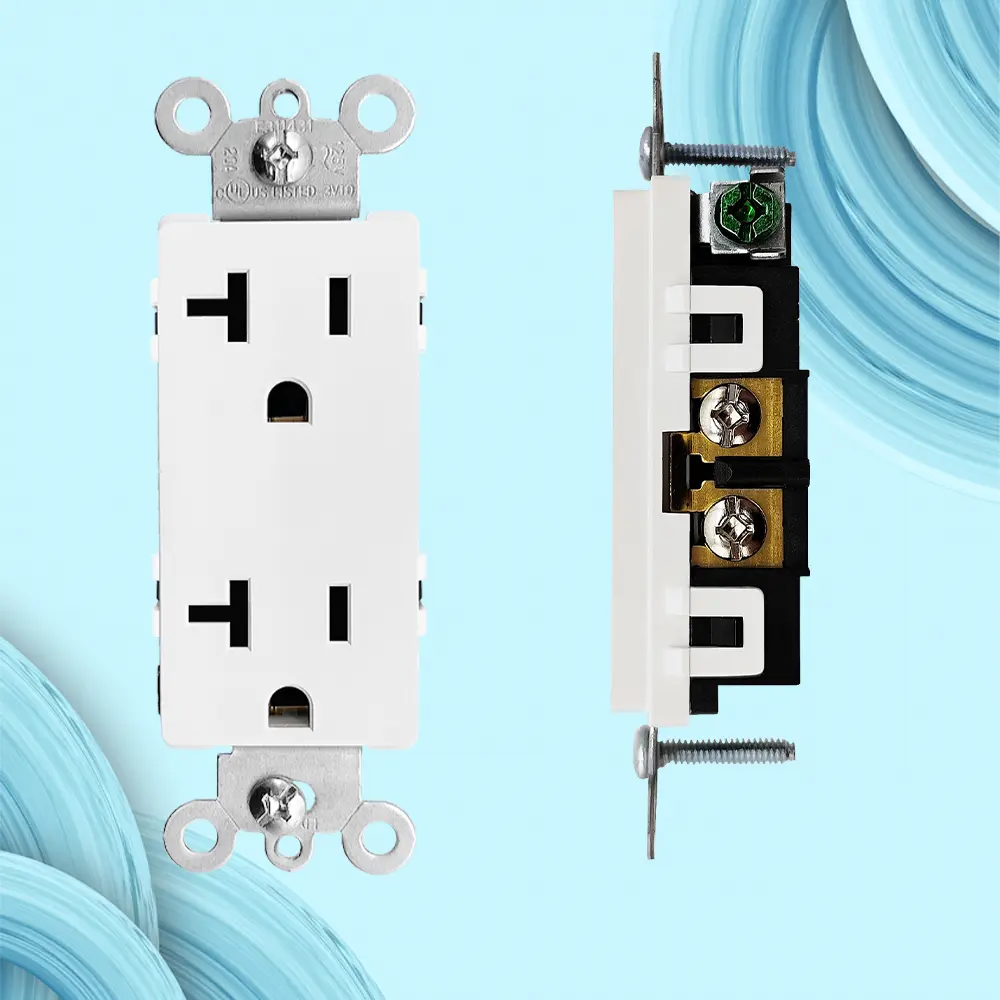

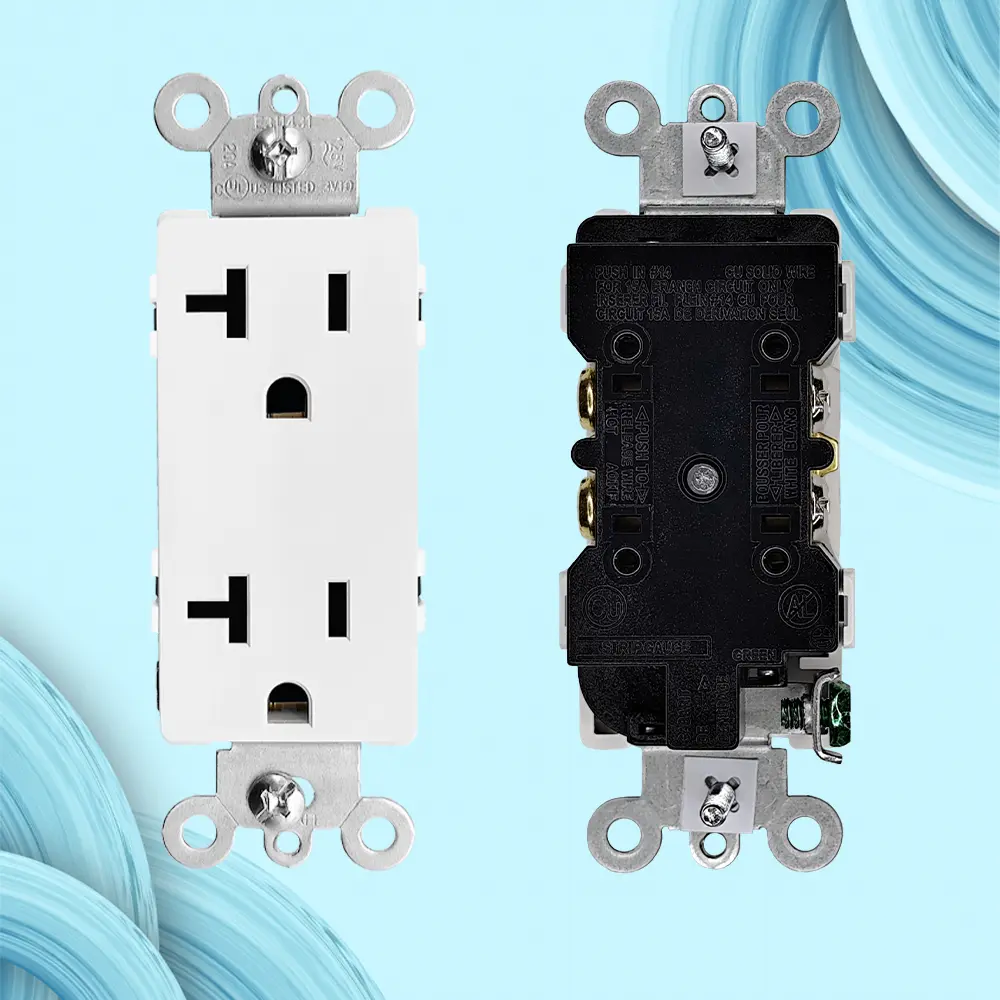

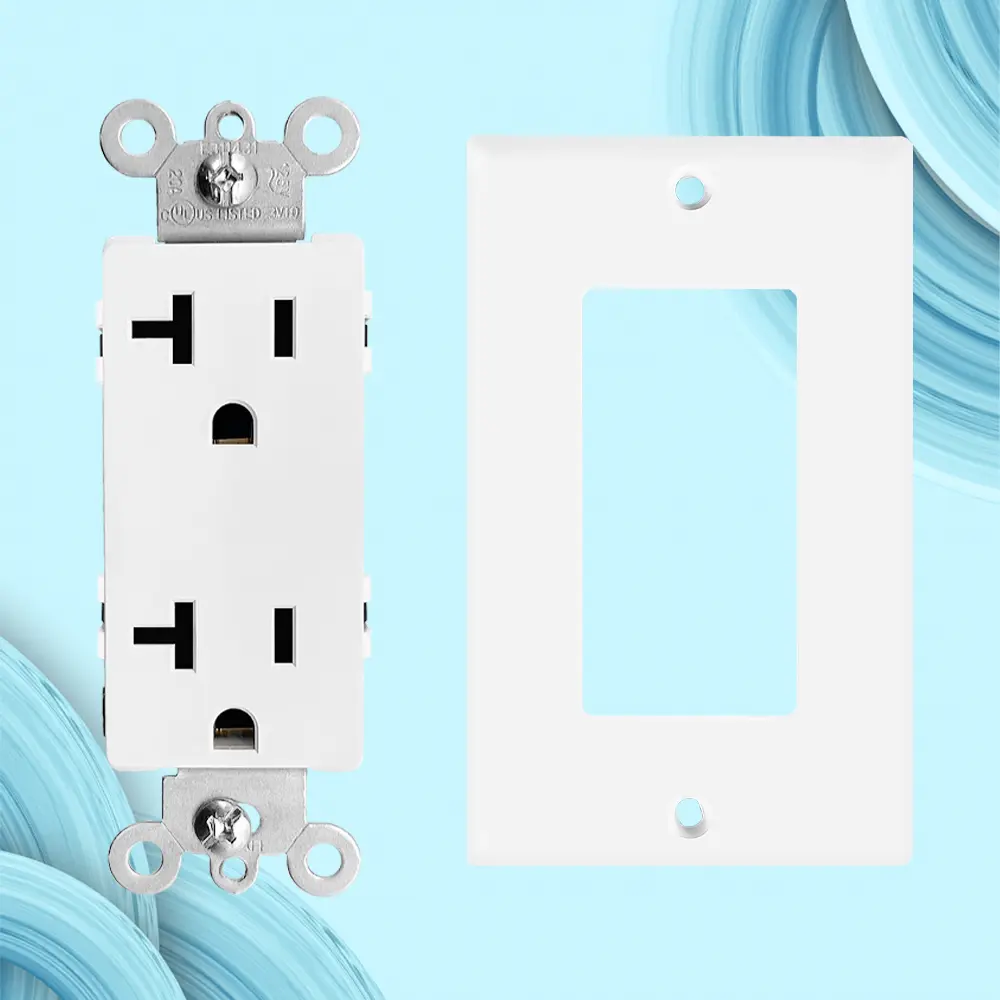

OEM 20A125V, 5-20R, Decora Duplex Receptacle.UL Factories, Factory

1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

Part No.	LD-3013
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, almond, Grey, Brown
Rating	20A, 125VAC
NEMA	5-20R or 5-20P
Pole / Wire	2 Pole / 3 Wire
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Face Material	Thermoplastic PC
Body Material	Thermoplastic PC
Strap Material	Steel

Compliance

UL Listed UL 498 UL File #E311431 ROHS Compliant

Characteristics

Flammability: UL-94, Rated V0

Operating Temp: -40°F to 149°F (-40°C to 65°C)

Core Features

Terminal screws accept up to No. 12 AWG copper wire

Double-wipe power contacts for reliable conductivity

Impact resistant thermoplastic construction

Heavy-gauge, galvanized steel mounting strap

Double-wipe ground contacts for long-term retention

Tri-Drive ground and mounting screws for easy install

Captive mounting screws & One-Year Warranty

Packing Information

Pack-out	1 / 20 / 200
Gross Weight (G.W.)	13 KGS
Measurements (MEAS)	42.5 * 29 * 23.5 CM

Frequently Asked Questions

What are the electrical ratings for the LD-3013 receptacle?

The LD-3013 Standard Duplex Receptacle is rated for 20A and 125VAC.

What safety certifications does this product hold?

This product is UL Listed (UL 498, file #E311431) and fully ROHS compliant.

What wire sizes are compatible with the terminal screws?

The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

What materials are used in the construction of the body and face?

Both the face and the body are constructed from high-quality, impact-resistant Thermoplastic PC.

Does the LD-3013 support different installation methods?

Yes, it supports both Quick-wire Push-in and Side termination for flexible installation.

What is the operating temperature range for this device?

The device is rated to operate reliably in temperatures ranging from -40°F to 149°F (-40°C to 65°C).
