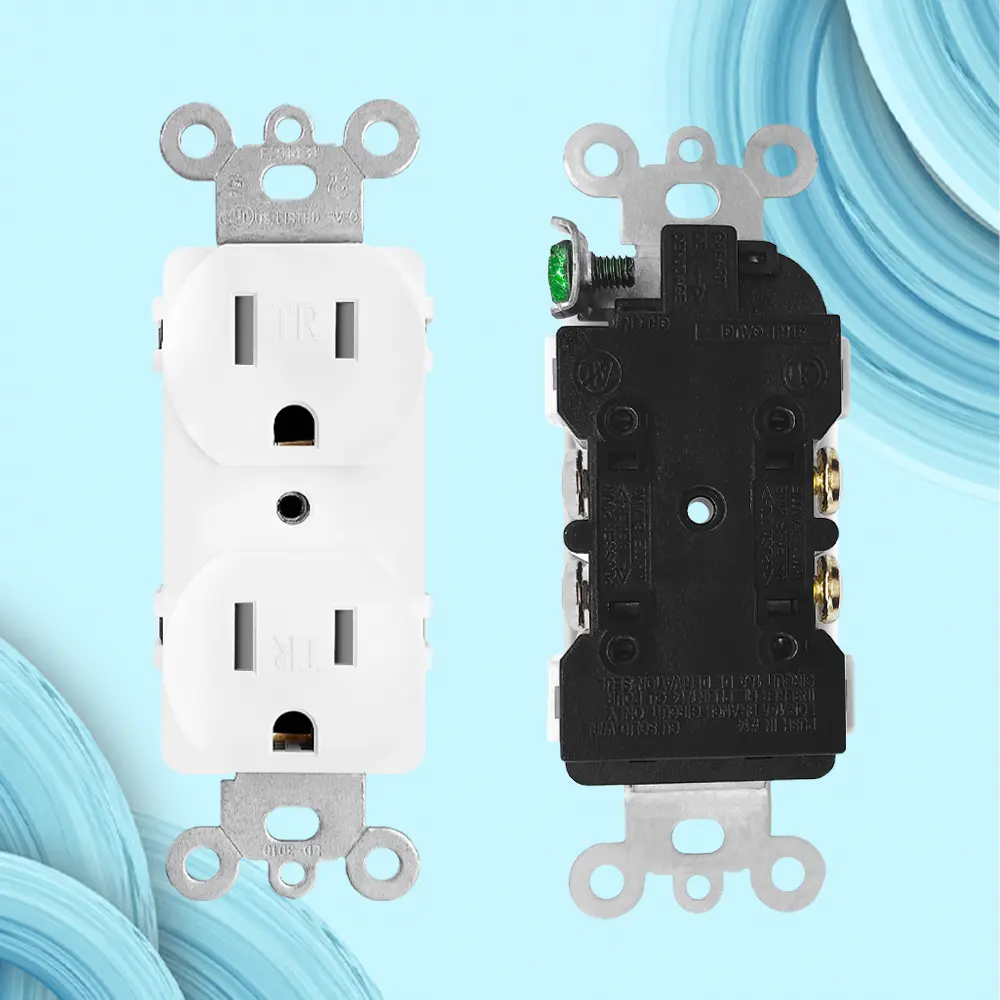

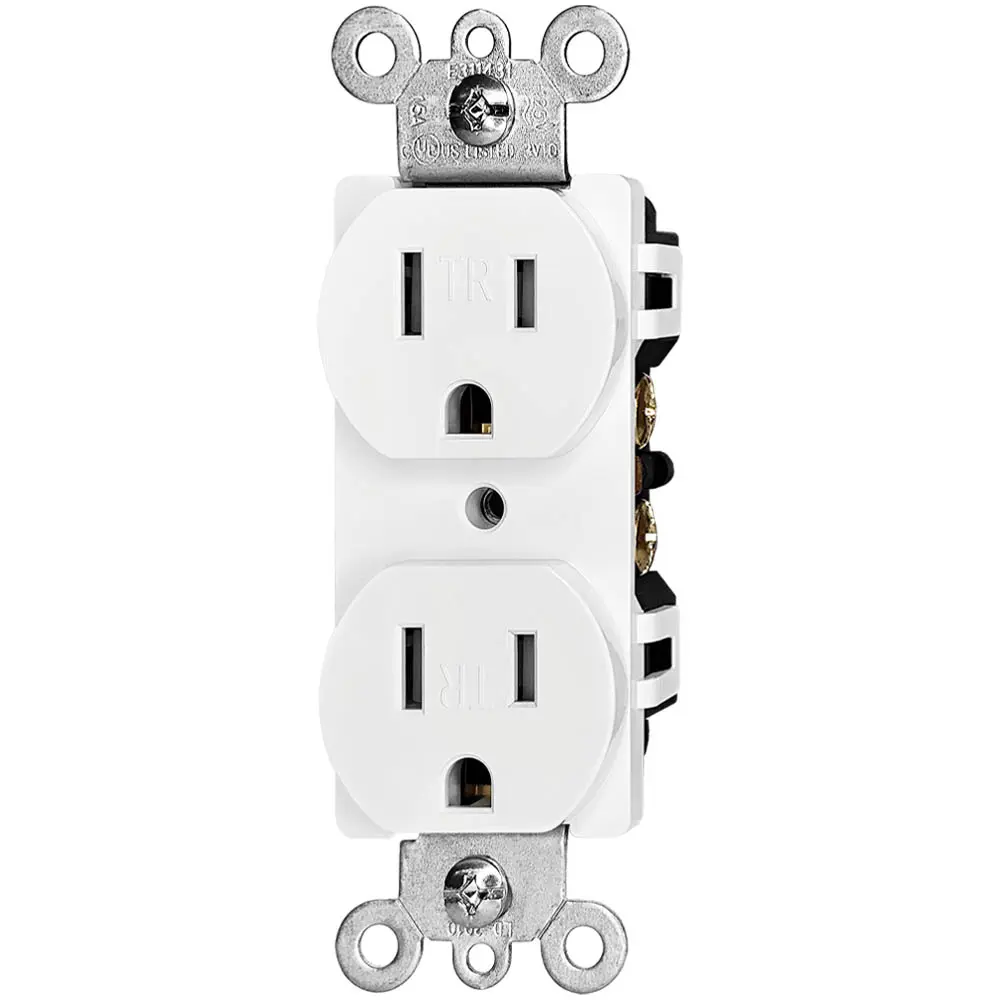

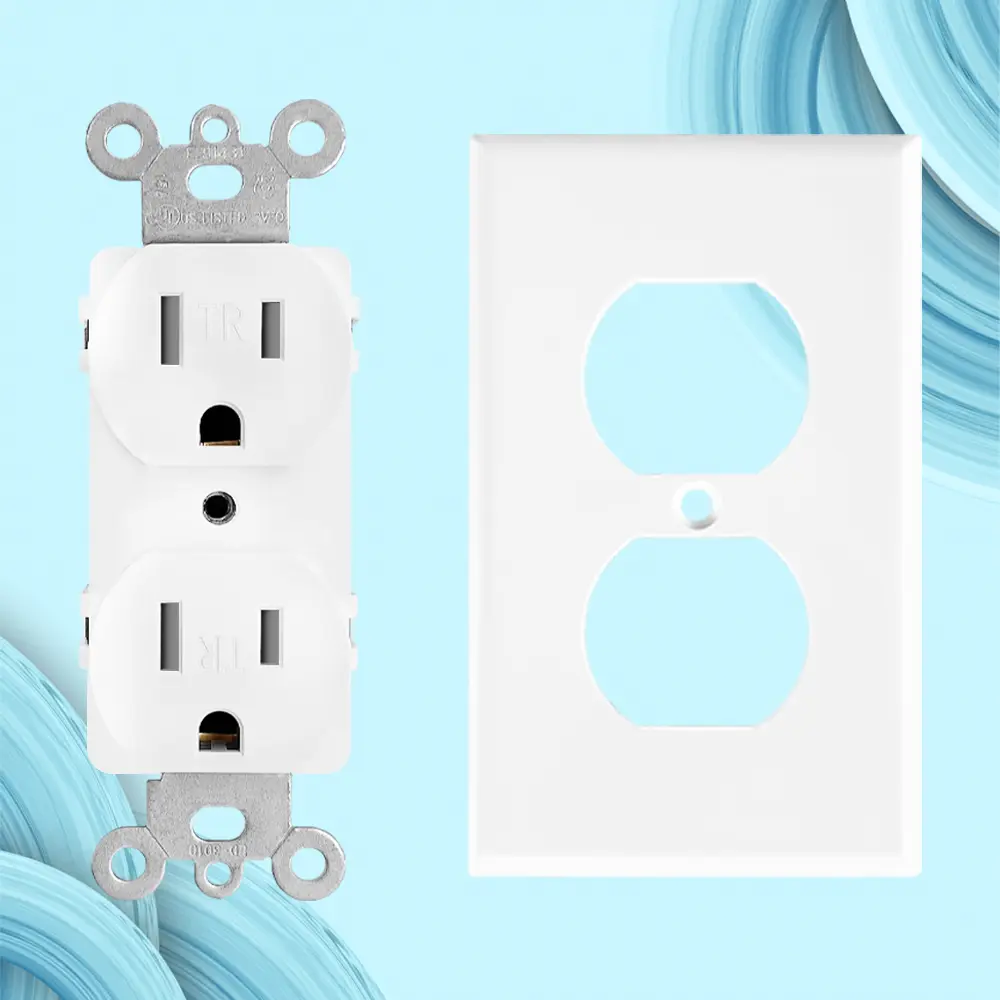

Wholesale 15A125V, 5-15R.Standard Duplex TR Receptacle UL Manufacturer, Factories

1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

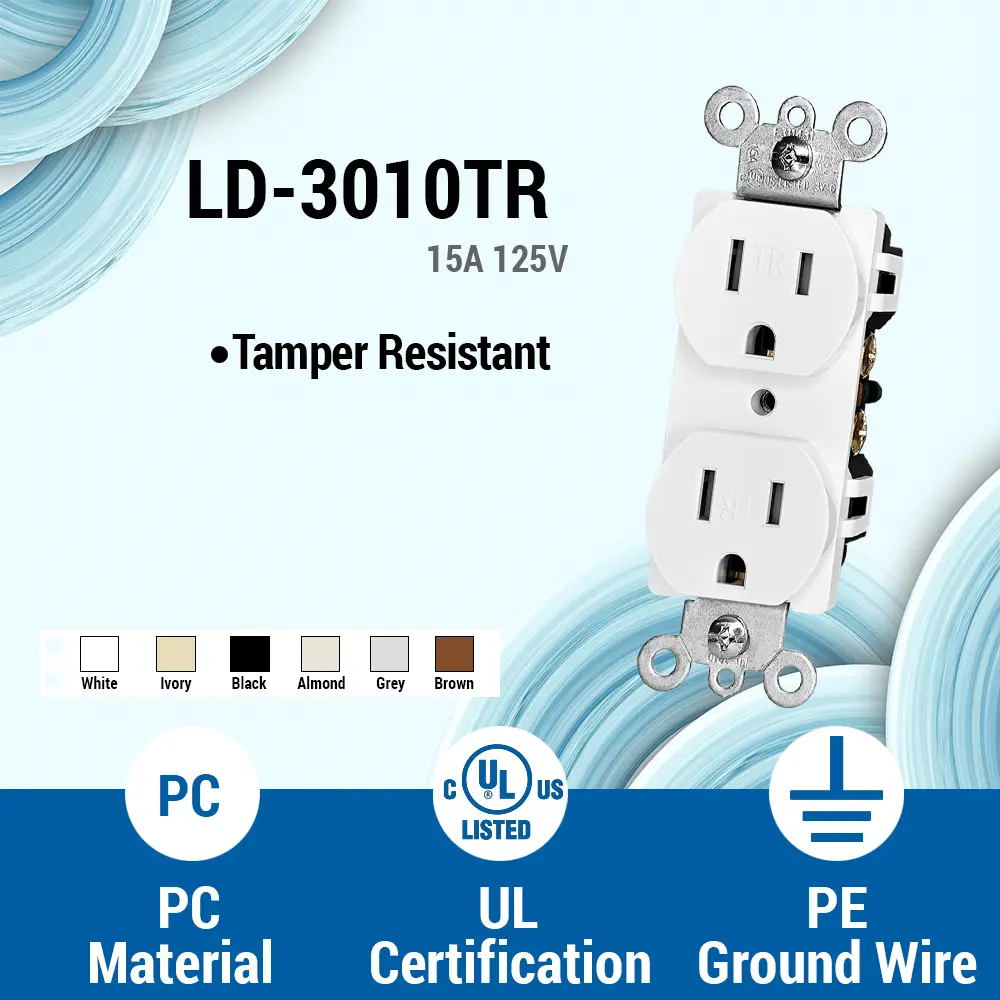

Part No.	LD-3010TR
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, Almond, Grey, Brown
Rating	15A, 125VAC
NEMA	5-15R or 5-15P
Pole / Wire	2-Pole, 3-Wire
Grounding	U Grounding Screw

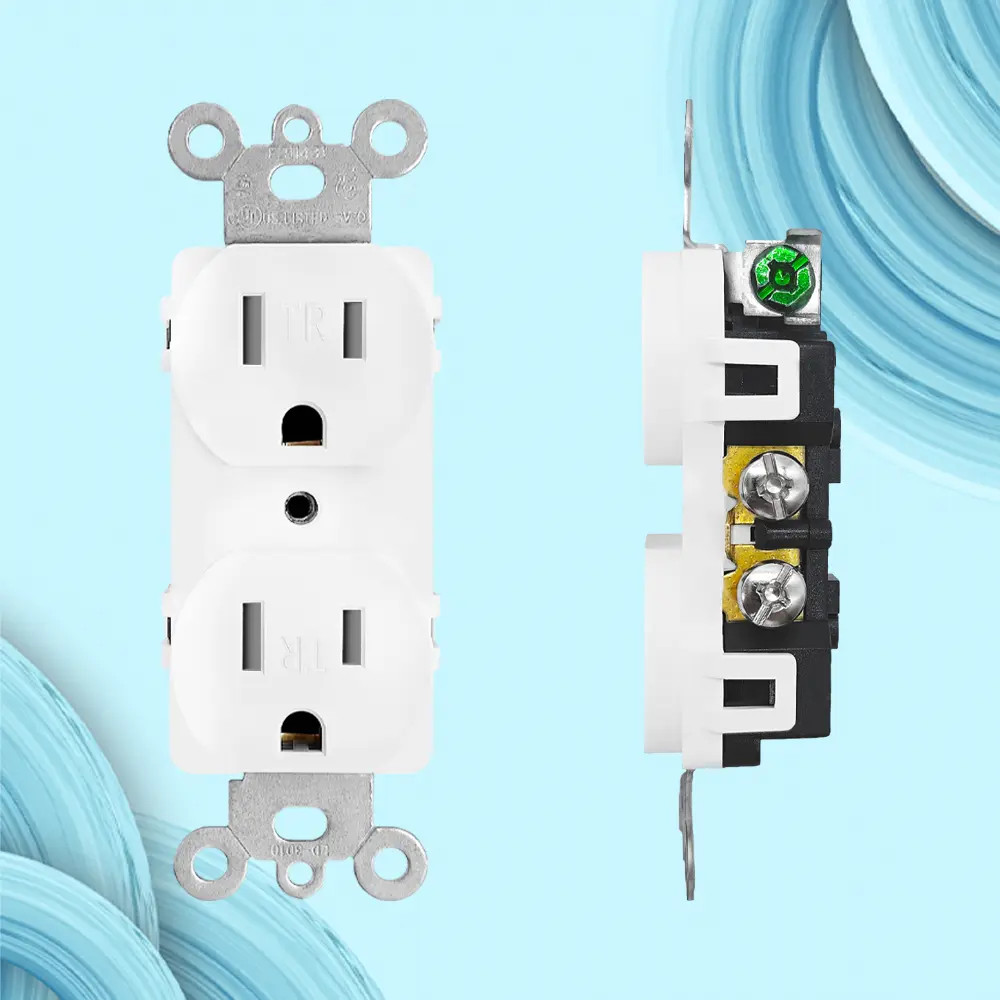

Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Material	Thermoplastic PC (Face & Body), Steel (Strap)

Key Features

Terminal screws accept up to No. 12 AWG copper or copper-clad wire

Double-wipe power contacts for reliable conductivity and plug retention

Impact resistant thermoplastic construction for long-term durability

Heavy-gauge, galvanized steel mounting strap for superior structural integrity

Double-wipe ground contacts ensure long-term ground retention

Tri-Drive ground, terminal and mounting screws for easy installation

Captive mounting screws prevent loss during installation

Limited one-Year Warranty provided

Compliance & Materials

UL Listed UL 498, UL file #E311431

ROHS compliant manufacturing

Flammability: UL-94, Rated V0

Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Packing Information

Pack-out: 1/20/200 units

Gross Weight: 13 KGS

Measurement: 42.5 * 29 * 23.5 CM

Frequently Asked Questions

Q1: What wire gauge is compatible with this duplex receptacle? A: The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

Q2: Is this product UL listed? A: Yes, it is UL Listed under UL 498 with UL file #E311431, ensuring high safety standards.

Q3: What materials are used in the construction? A: The face and body are made of high-quality thermoplastic PC, while the mounting strap is made of heavy-gauge galvanized steel.

Q4: Can this receptacle handle extreme temperatures? A: Yes, it has an operating temperature range of -40°F to 149°F (-40°C to 65°C).

Q5: What are the termination options for installation? A: It features both Quick-wire Push-in and Side termination for flexible and easy installation.

Q6: What is the electrical rating of the LD-3010TR? A: It is rated for 15A at 125VAC, suitable for standard residential and commercial use.
