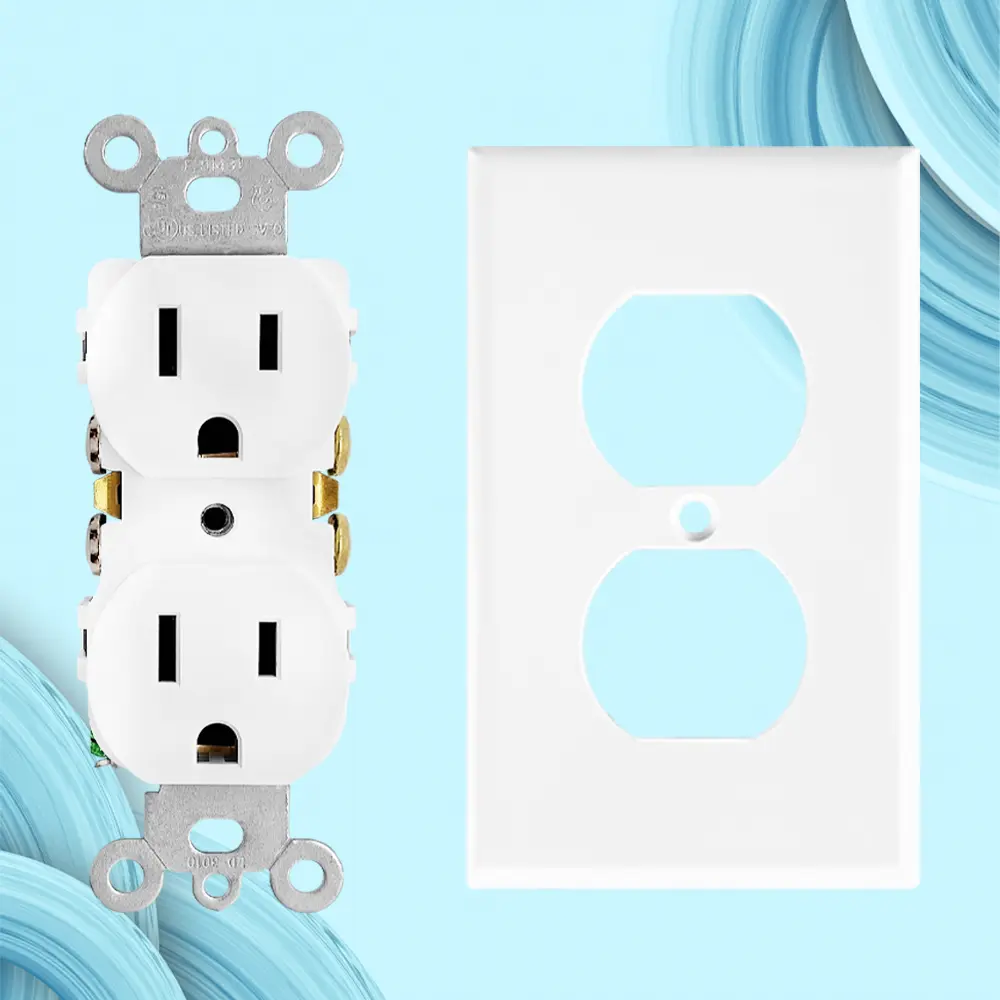

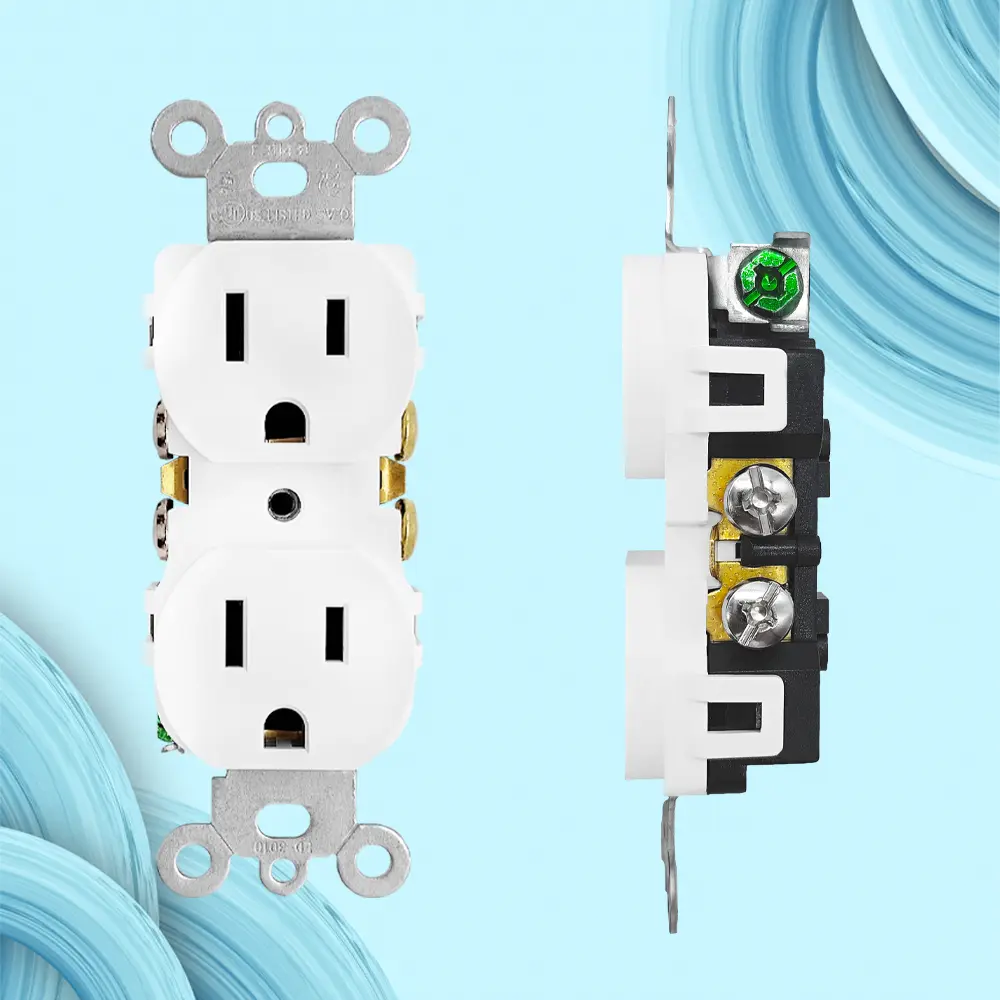

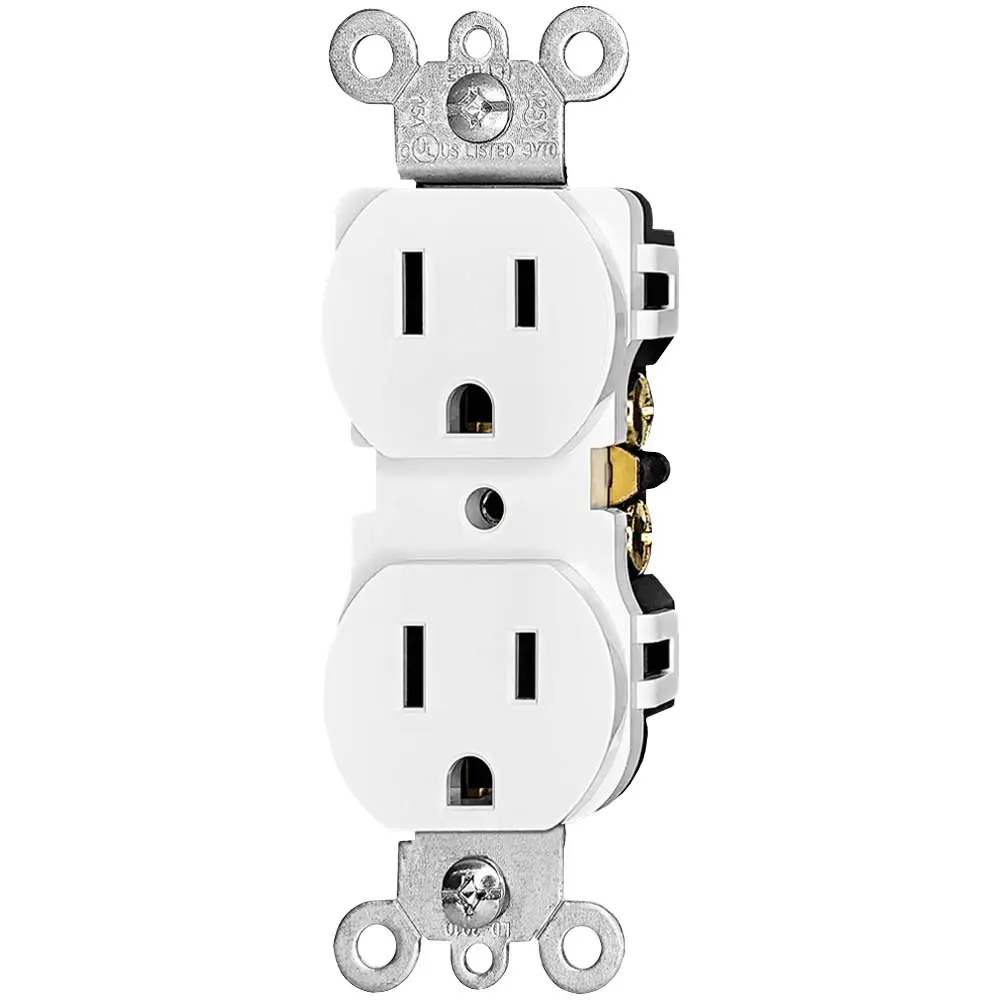

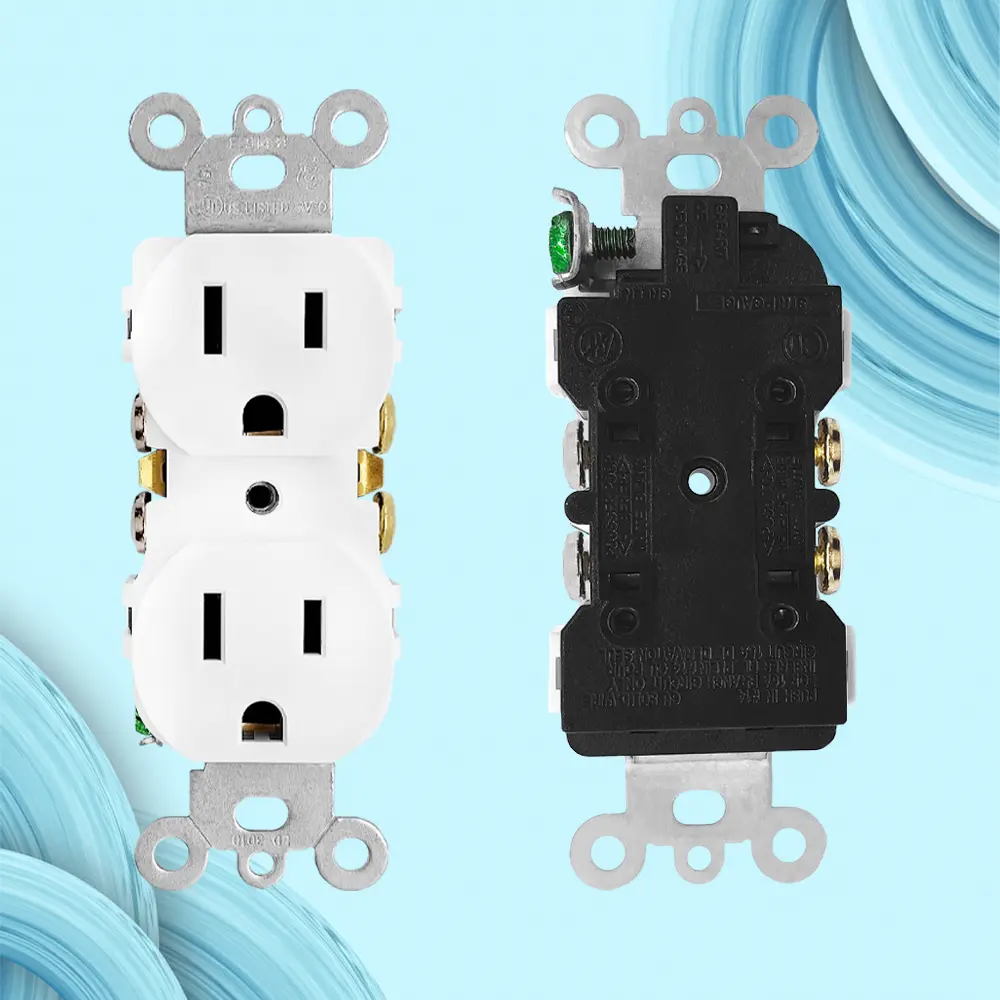

OEM 15A125V, 5-15R.Standard Duplex Receptacle.UL Factories, Factory

1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

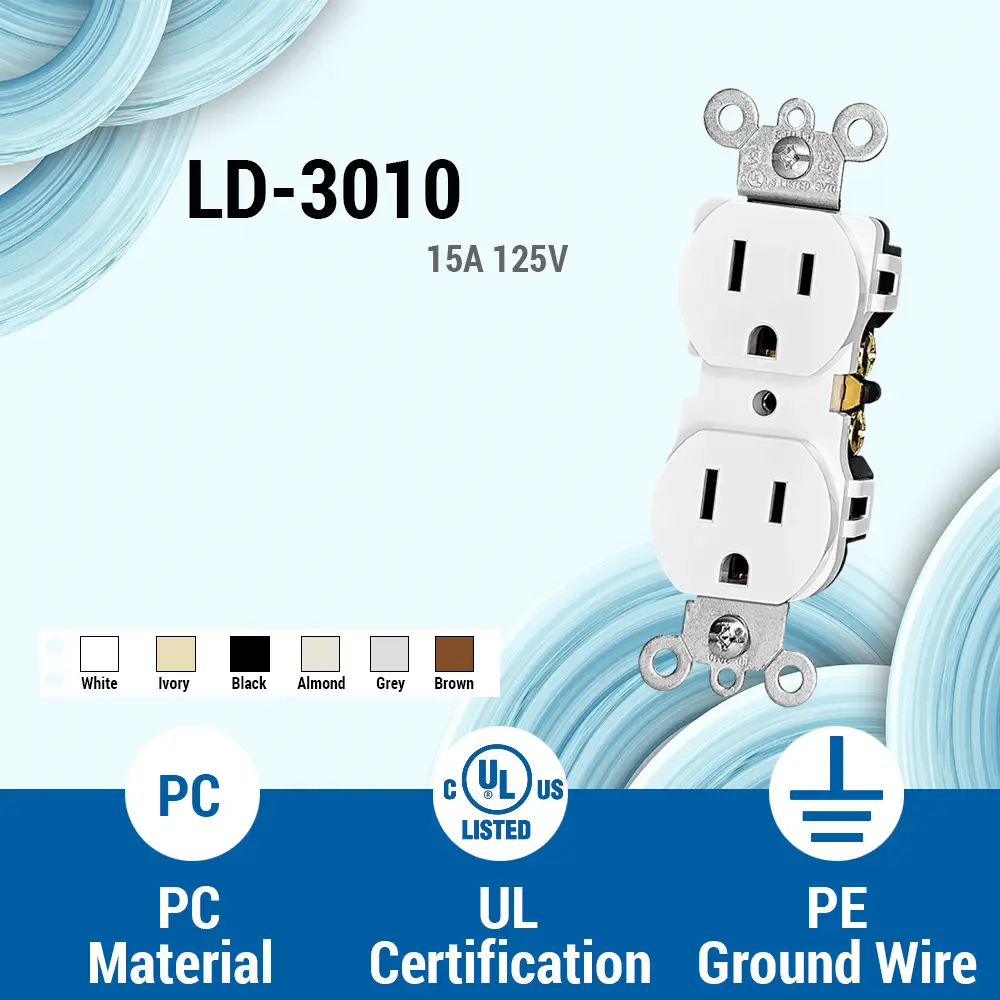

Part No.	LD-3010
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, Almond, Grey, Brown
Rating	15A, 125VAC
NEMA	5-15R or 5-15P
Pole / Wire	2-Pole, 3-Wire
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Face Material	Thermoplastic PC
Body Material	Thermoplastic PC
Strap Material	Steel

Code Compliance

UL Listed UL 498, UL file #E311431
ROHS compliant

Material Characteristics

Environmental: Flammability, UL-94, Rated V0
Operating Temp: -40°F to 149°F (-40°C to 65°C)

Key Features

Terminal screws accept up to No. 12 AWG copper or copper-clad wire
Double-wipe power contacts for reliable conductivity and plug retention
Impact resistant thermoplastic PC construction
Heavy-gauge, galvanized steel mounting strap
Double-wipe ground contacts ensure long-term ground retention
Tri-Drive ground, terminal and mounting screws ease installation
Captive mounting screws for simplified setup
Limited One-Year Warranty

Packing Information

Pack-out: 1 / 20 / 200

G.W.: 13 KGS

MEAS: 42.5 * 29 * 23.5 CM

Frequently Asked Questions

Q1: What wire size is compatible with this duplex receptacle? A: The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

Q2: What is the fire safety rating for the materials used? A: Both the face and body are made of thermoplastic PC with a UL-94 flammability rating of V0.

Q3: Does this product support quick installation? A: Yes, it features both Quick-wire push-in and side termination, along with Tri-Drive screws to ease installation.

Q4: Is the receptacle UL listed? A: Yes, it is UL Listed under UL 498 with file number E311431 and is ROHS compliant.

Q5: What are the electrical ratings for the LD-3010? A: It is rated for 15 Amps and 125 VAC.

Q6: What is the operating temperature range? A: This receptacle can operate in temperatures ranging from -40°F to 149°F (-40°C to 65°C).
